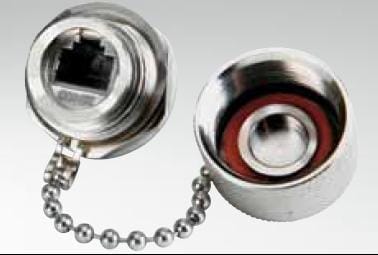

Amphenol CONEC 17-100934 Circular INLINE SKT CONN SHIELD

Color: Metal

Gender: Jack (Female)

IP Rating: IP67

Shielding: Shielded

USOC Codes: RJ45

Application: 1000 Base-T

Unit Weight: 80.700 g

Configuration: 1x1

Tab Direction: User Selectable

Current Rating: 1.2 A

Mounting Angle: Straight

Mounting Style: Panel Mount

Voltage Rating: 100 VDC

Contact Plating: Gold

Number of Ports: 1 Port

Contact Material: Phosphor Bronze

Locking Mechanism: Threaded

Mounting Direction: Front/Rear

Flammability Rating: UL 94 V-0

Performance Category: Cat 5e

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
