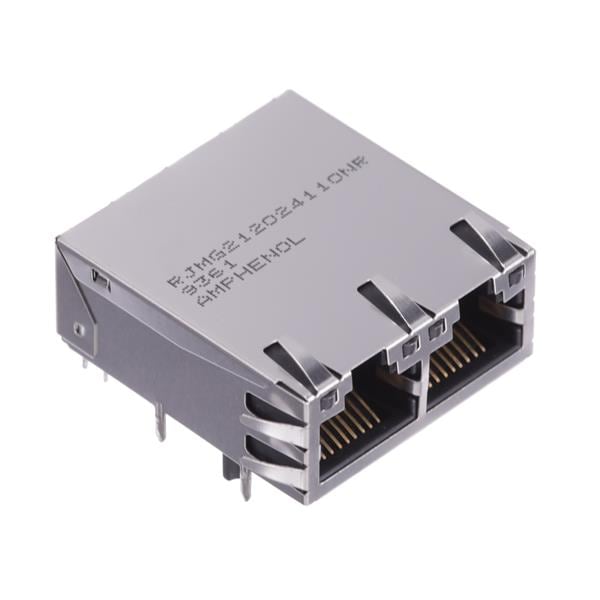

Amphenol Commercial Products RJMG212024110NR Magnetic Jack RJ Magnetic (RJMG) - 1xN, Input Output Connectors, Right angle, dip type, Long body, 1x2, 1000 base-T, Green /Green-Yellow.

Color: Black

Pitch: 1.01 mm

Gender: Jack (Female)

Shielding: Shielded, EMI Fingers

USOC Codes: RJ45

Application: 1000 Base-T

Configuration: 1x2

Mating Cycles: 750 Cycle

Tab Direction: Tab Up

Current Rating: 100 mA

Mounting Angle: Right Angle

Mounting Style: Through Hole

Number of Rows: 1 Row

Voltage Rating: 500 VDC

Contact Plating: Gold

LED L / R Color: Green / Green, Yellow

Number of Ports: 2 Port

Contact Material: Phosphor Bronze

Termination Style: Solder

Number of Contacts: 8 Contact

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Performance Category: Cat 6a

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C

Number of Positions / Contacts per Port: 8P8C
