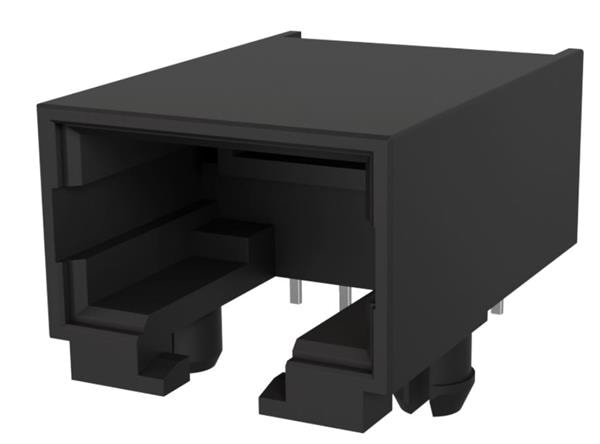

Amphenol Commercial Products RJE7H1880F10R High Speed 1G Series - CAT5E RJ45 - 1 Port without LED, UnShielded with Gold Flash Plating

Shielding: Unshielded

USOC Codes: RJ45

Configuration: 1x1

Mating Cycles: 750 Cycle

Tab Direction: Tab Down

Mounting Angle: Vertical

Mounting Style: PCB Mount

Number of Rows: 1 Row

Voltage Rating: 125 VAC

Contact Plating: Gold

Number of Ports: 1 Port

Contact Material: Phosphor Bronze

Termination Style: Through Hole

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Performance Category: Cat 5e

Insulation Resistance: 500 MOhms

Operating Temperature Range: - 55 C to + 85 C

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 55 C
