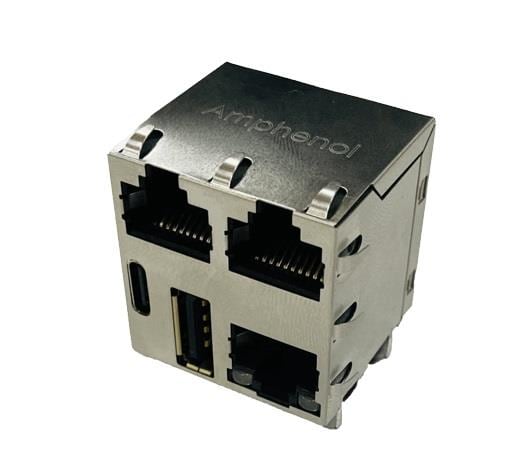

Amphenol Commercial Products RJE7G58814A112 Connectors MODULAR JACK COMBO
Color: Black
Gender: Jack (Female)
Shielding: Shielded
USOC Codes: RJ45
Configuration: 1x5
Mating Cycles: 750 Cycle
Tab Direction: Top Entry
Current Rating: 1 A
Mounting Angle: Right Angle
Mounting Style: PCB Mount
Voltage Rating: 125 VAC
Contact Plating: Gold
LED L / R Color: Green, Yellow
Contact Material: Copper Alloy
Termination Style: Through Hole
Number of Contacts: 8 Contact
Flammability Rating: UL 94 V-0
Performance Category: Cat 5
Insulation Resistance: 500 MOhms
Operating Temperature Range: - 20 C to + 60 C
Maximum Operating Temperature: + 60 C
Minimum Operating Temperature: - 20 C
