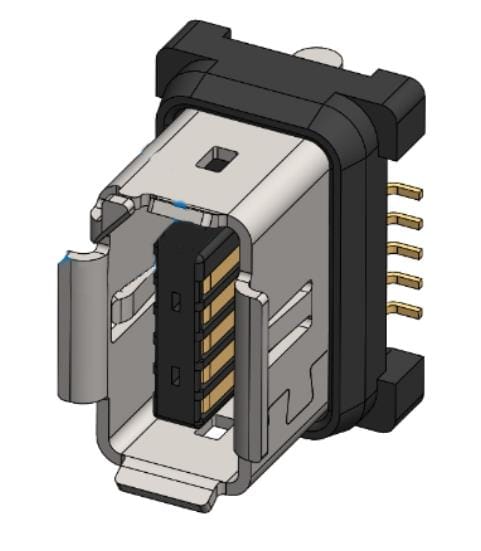

Amphenol Commercial Products ND9BS3200 Connectors ix Industrial IP20 Rct, Type B RA SMT

Color: Black

Gender: Jack (Female)

IP Rating: IP20

Shielding: Shielded

USOC Codes: RJ50

Application: 10G Base-T

Configuration: 1x1

Mating Cycles: 5000 Cycles

Current Rating: 1.5 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Voltage Rating: 50 VAC, 60 VDC

Contact Plating: Gold

Contact Material: Copper Alloy

Termination Style: SMD/SMT

Number of Contacts: 10 Contact

Flammability Rating: UL 94 V-0

Performance Category: Cat 6a

Insulation Resistance: 500 MOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 55 C

Number of Positions / Contacts per Port: 10P10C
