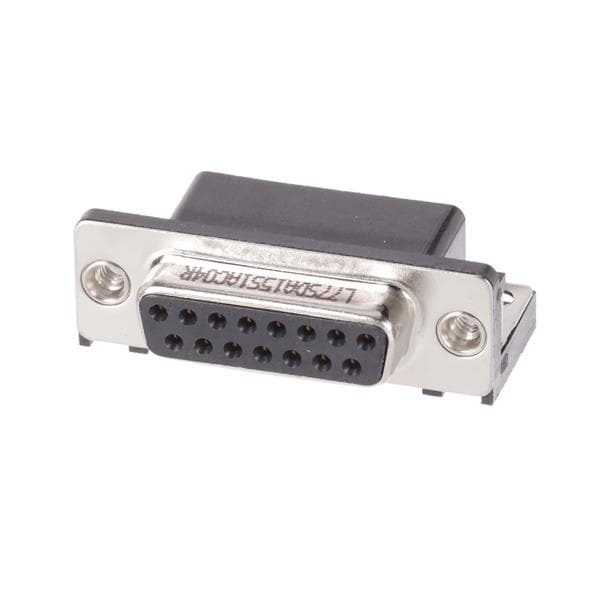

Amphenol Commercial Products L77SDA15S1ACO4R Receptacle Dsub, Stamped Signal 3A, Right Angle PCB Thru Hole, FP=10.40mm (.409in), Row Pitch 2.54mm, 15 Socket, Flash Gold, Bright Tin Shell, 4-40 Rear Insert, Ground Tab with Clear Hole Without Boardlock

Pitch: 2.77 mm

Gender: Female

Filtered: Unfiltered

Shell Size: 2 (A)

Unit Weight: 16.466 g

Shell Plating: Tin

Contact Gender: Socket (Female)

Current Rating: 3 A

Mounting Angle: Right Angle

Mounting Style: Board Lock

Number of Rows: 2 Row

Shell Material: Steel

Voltage Rating: 250 V

Contact Plating: Gold

Contact Material: Copper Alloy

Termination Style: Through Hole

Insulation Material: Polybutylene Terephthalate (PBT)

Number of Positions: 15 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
