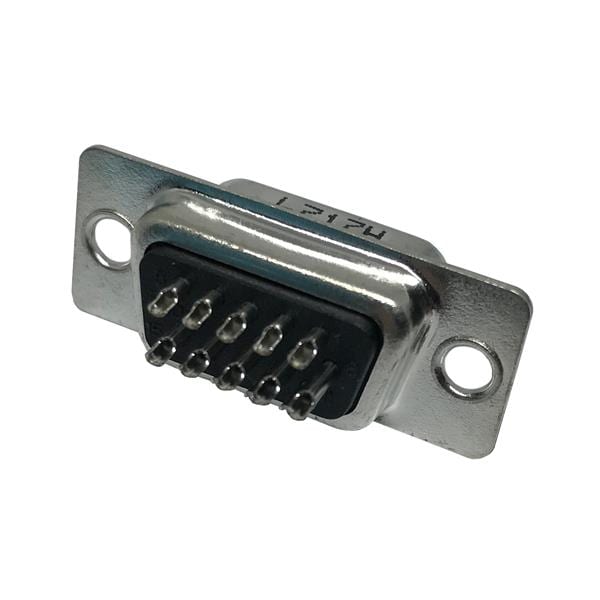

Amphenol Commercial Products L717HDE15P High Density D-Sub Connectors 15P Sz E Hi Density Pin

Pitch: 2.29 mm

Gender: Male

Height: 12.55 mm

Filtered: Unfiltered

Boardlocks: Without

Insulation: Insulated

Shell Size: 15

Unit Weight: 6.611 g

Contact Type: Stamped / Formed

REACH - SVHC: Details

Shell Plating: Tin over Nickel

Current Rating: 3 A

Mounting Angle: Straight

Mounting Style: Panel

Number of Rows: 3 Row

Shell Material: Steel

Voltage Rating: 1 kV

Contact Plating: Gold

Contact Material: Brass

Termination Style: Solder

Insulation Material: Glass Filled Thermoplastic

Number of Positions: 15 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
