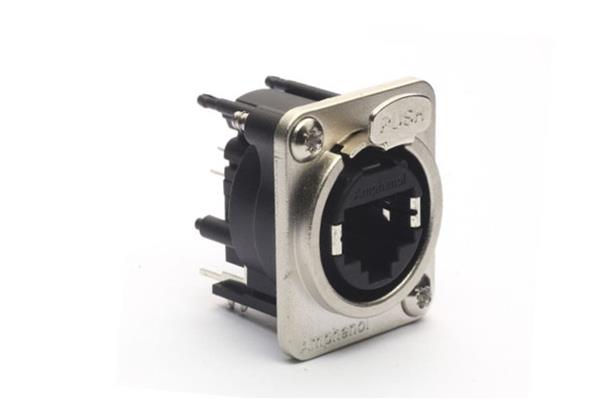

Amphenol Audio RJX8FD3VB XLR XLRnet D TYPE VERT PCB CLASS D
ManufacturerAmphenol Audio(View more products from this manufacturer)
ModelRJX8FD3VB
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 2.54 mm
Gender: Jack (Female)
IP Rating: IP40
Shielding: Unshielded
USOC Codes: RJ45
Configuration: 1x1
Mating Cycles: 1000 Cycle
Current Rating: 1.5 A
Mounting Angle: Vertical
Mounting Style: PCB Mount
Voltage Rating: 125 V
Contact Plating: Gold
Number of Ports: 1 Port
Contact Material: Phosphor Bronze
Locking Mechanism: Latching
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 8 Position
Insulation Resistance: 500 MOhms
Maximum Operating Temperature: + 80 C
Minimum Operating Temperature: - 40 C
