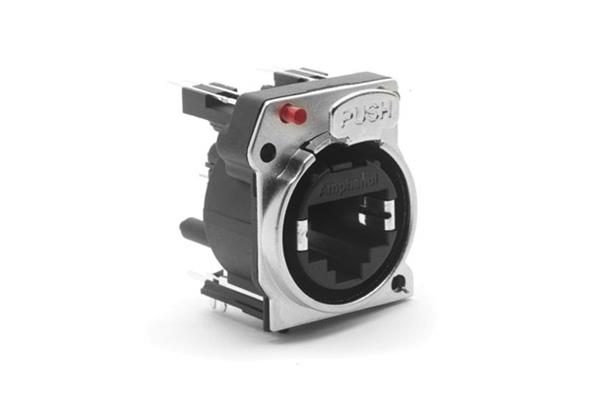

Amphenol Audio RJX8FB5VUUB XLR XLRnet B TYPE VERT PCB CAT5E BLUE/BLUE

Pitch: 2.54 mm

Gender: Jack (Female)

IP Rating: IP40

Shielding: Unshielded

USOC Codes: RJ45

Configuration: 1x1

Mating Cycles: 1000 Cycle

Current Rating: 1.5 A

Mounting Angle: Vertical

Mounting Style: PCB Mount

Voltage Rating: 125 V

Contact Plating: Gold

LED L / R Color: Blue / Blue

Number of Ports: 1 Port

Contact Material: Phosphor Bronze

Locking Mechanism: Latching

Termination Style: Solder

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Performance Category: Cat 5e

Insulation Resistance: 500 MOhms

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
