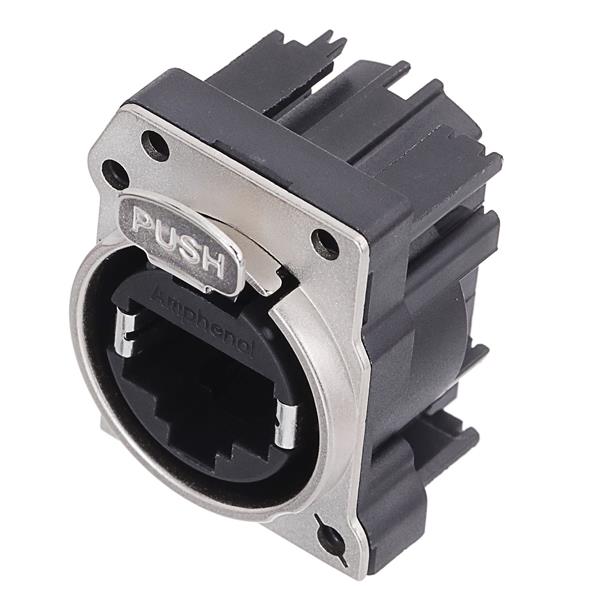

Amphenol Audio RJX8FB5HB XLR XLRnet B Type Horizontal PCB CAT5e

Color: Black

Gender: Jack (Female)

IP Rating: IP40

Shielding: Unshielded

USOC Codes: RJ45

Application: 1000 Base-T

Unit Weight: 21.817 g

Configuration: 1x1

Mating Cycles: 1000 Cycle

Tab Direction: Tab Down

Current Rating: 1.5 A

Mounting Angle: Straight

Mounting Style: Flange Mount

Voltage Rating: 125 VAC

Contact Plating: Gold

Number of Ports: 1 Port

Contact Material: Phosphor Bronze

Termination Style: Solder

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Performance Category: Cat 5e

Insulation Resistance: 500 MOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
