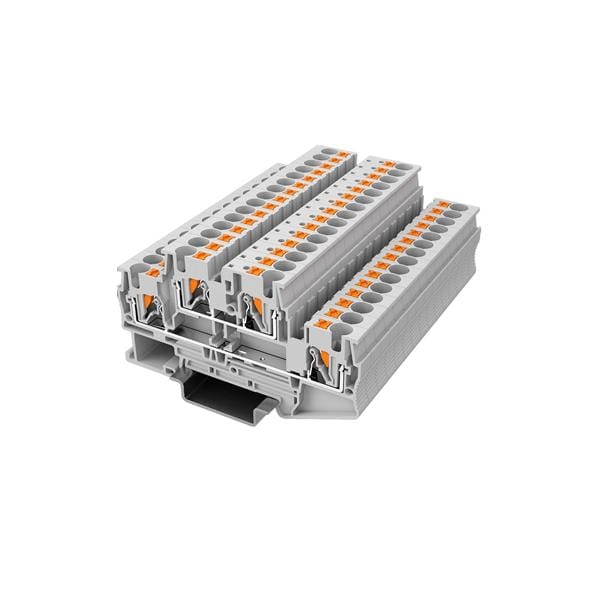

Amphenol Anytek APTD042SDGY00G DIN Rail Terminal Block APT 4mm2/2*2 Feed-through terminal blockDouble layer , 1in-1out/each layer Grey
ManufacturerAmphenol Anytek(View more products from this manufacturer)
ModelAPTD042SDGY00G
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Gray
Width: 45.85 mm
Height: 6.2 mm
Length: 83.65 mm
Current Rating: 28 A
Mounting Style: DIN Rail
Voltage Rating: 500 V
Wire Gauge Max: 10 AWG
Wire Gauge Min: 24 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 24 AWG to 10 AWG
Connection Method: Spring
Flammability Rating: UL 94 V-0
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
