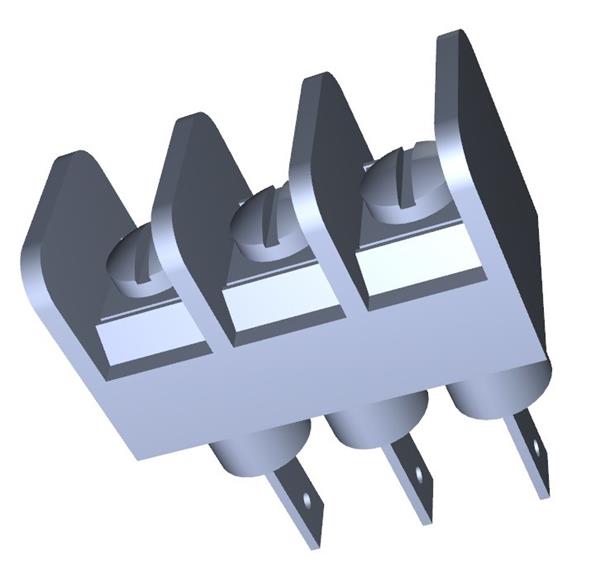

AMP Connectors - TE Connectivity JC6-F407-03 Barrier Terminal Blocks Turret, Barrier Str
ModelJC6-F407-03
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Black
Pitch: 9.53 mm
Thread Size: 6-32
Unit Weight: 18.490 g
Current Rating: 20 A
Mounting Angle: Straight
Mounting Style: Through Hole
Number of Rows: 1 Row
Voltage Rating: 300 V
Wire Gauge Max: 12 AWG
Wire Gauge Min: 22 AWG
Contact Plating: Tin
Contact Material: Copper Alloy
Housing Material: Thermoplastic
Termination Style: Quick Connect
Flammability Rating: UL 94 V-0
Number of Positions: 3 Position
Maximum Operating Temperature: + 105 C
