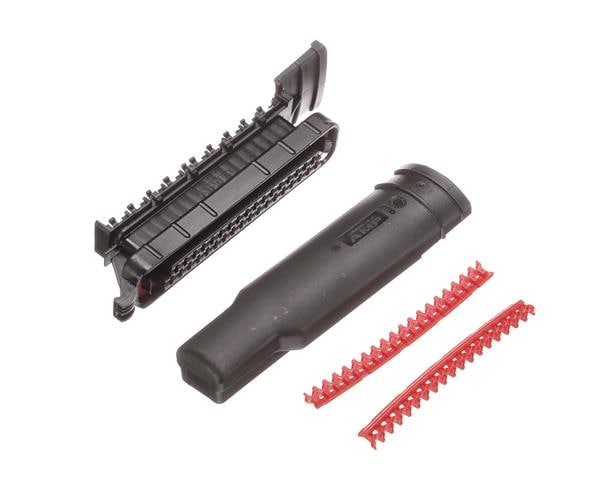

AMP Connectors - TE Connectivity 282195-2 Housings SPLASH PROOF CONN. W/S.L.35 WA

Color: Gray

Pitch: 5 mm (0.197 in)

Width: 150 mm

Gender: Receptacle (Female)

Height: 35.8 mm

Length: 146 mm

Application: Signal

Row Spacing: 5 mm

Unit Weight: 67.231 g

Contact Type: Socket

Contact Gender: Without Socket Contacts

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Voltage Rating: 24 VDC

Housing Material: Polyamide (PA)

Lock Mate Feature: On the terminal

Termination Style: Crimp

Number of Positions: 35 Position

Description/Function: Timer Connector System, Housing for Female Terminals

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 30 C
