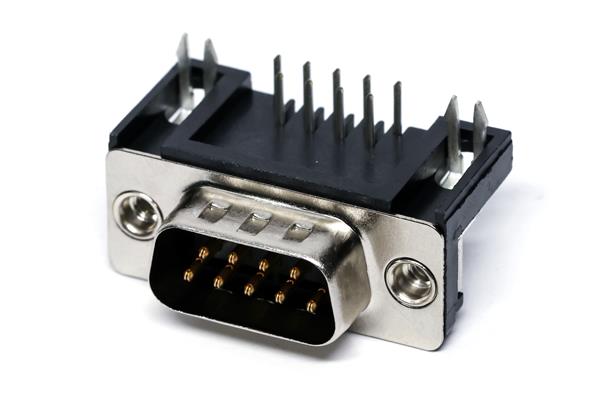

AMP Connectors - TE Connectivity 2301843-1 Plug AMPL PLUG HD20, R/A 9P, B/L,4-40 INS
Pitch: 2.77 mm
Gender: Male
Filtered: Unfiltered
Boardlocks: With Boardlocks
Shell Size: 1 (E)
Unit Weight: 7.400 g
Contact Type: Machined Contacts
REACH - SVHC: Details
Contact Gender: Pin (Male)
Current Rating: 1.5 A
Mounting Angle: Right Angle
Mounting Style: Board Lock
Number of Rows: 2 Row
Voltage Rating: 250 VAC
Contact Plating: Gold
Contact Material: Brass
Termination Style: Solder
Insulation Material: Polybutylene Terephthalate (PBT)
Number of Positions: 9 Position
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 55 C
