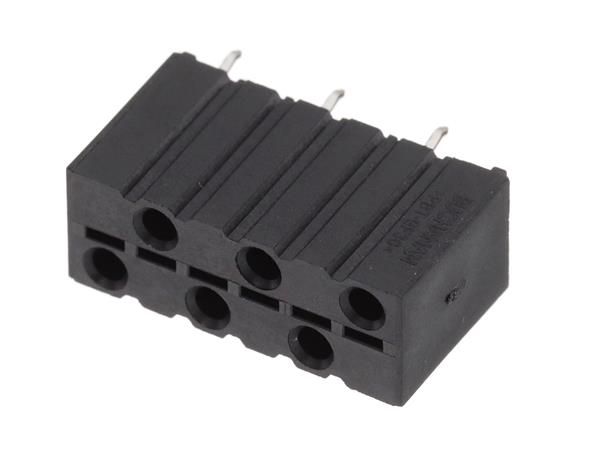

AMP Connectors - TE Connectivity 1811398-1 Headers 6P VERT SCREWLESS WIRE CONNECTOR
Model1811398-1
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 3.5 mm
Width: 8.64 mm
Height: 13 mm
Length: 22.9 mm
Application: Wire to Board
Unit Weight: 4.174 g
Contact Type: Pin (Male)
Current Rating: 2 A
Mounting Style: Panel Mount
Voltage Rating: 600 V
Wire Gauge Max: 16 AWG
Wire Gauge Min: 18 AWG
Contact Plating: Tin
Contact Material: Phosphor Bronze
Housing Material: Polybutylene Terephthalate (PBT)
Termination Style: Through Hole
Flammability Rating: UL 94 V-0
Number of Positions: 6 Position
