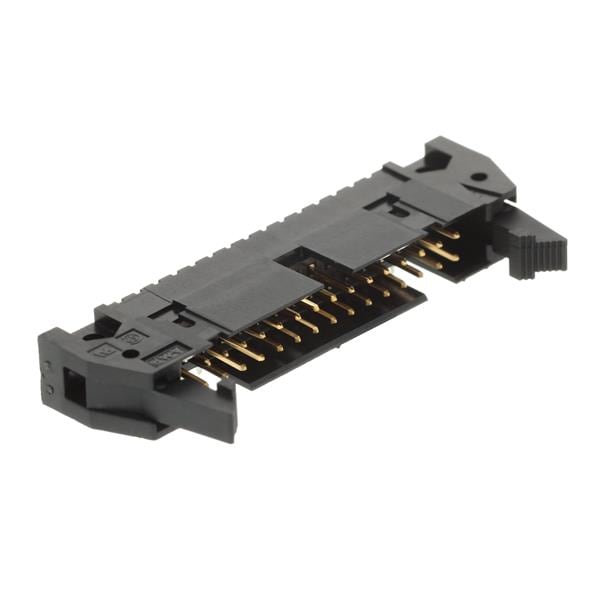

AMP Connectors - TE Connectivity 5499913-7 Shrouded A/L UNIV HDR 30P RA SHT LAT

Pitch: 2.54 mm (0.1 in)

Application: Wire-to-Board

Row Spacing: 2.54 mm (0.1 in)

Unit Weight: 7.535 g

Housing Color: Black

Latching Type: Ejection

Contact Gender: Pin (Male)

Mounting Angle: Right Angle

Mounting Style: Through Hole

Number of Rows: 2 Row

Contact Plating: Gold

Housing Material: Thermoplastic

Termination Style: Solder Pin

Flammability Rating: UL 94 V-0

Number of Positions: 30 Position

Termination Post Length: 2.79 mm (0.11 in)

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 65 C
