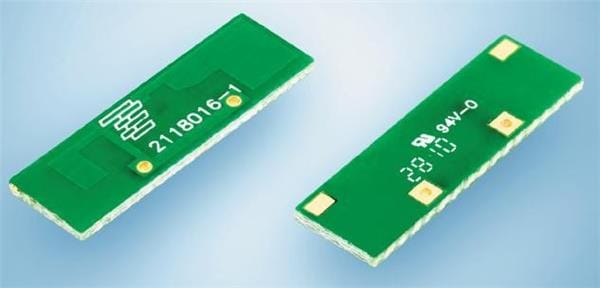

AMP Connectors - TE Connectivity 2118016-1 Passive Antenna PCB ANTENNAS, WLAN DUAL BAND

Gain: 2 dBi

VSWR: 3:1

Width: 6.2 mm

Height: 0.79 mm

Length: 18.9 mm

Impedance: 50 Ohms

Application: Wireless Application

Unit Weight: 300 mg

Power Rating: 10 W

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 2 Band

Center Frequency: 2.45 GHz, 5.5 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 5.875 GHz

Minimum Frequency: 2.4 GHz

Termination Style: SMD/SMT

Protocol - Sub GHz: IoT, ISM

Protocol - WiFi - 802.11: 802.11, WLAN, WiFi, WiMAX

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
