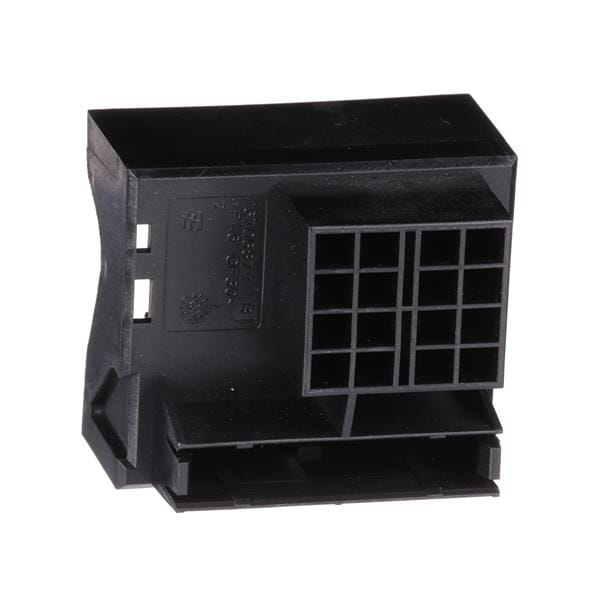

AMP Connectors - TE Connectivity 1670687-1 Tab Housing 16POS,TAB 2.8X0.63, TAB HSG
Model1670687-1
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Black
Pitch: 5.08 mm (0.2 in)
Width: 40.5 mm
Gender: Plug (Male)
Height: 41.3 mm
Length: 48.6 mm
Material: Polyamide (PA)
Application: Wire to Board/Device
Row Spacing: 55.6 mm
Unit Weight: 18.768 g
Contact Gender: Tab
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 4 Row
Housing Material: Polyamide (PA)
Locking Mechanism: On the terminal
Termination Style: Crimp
Flammability Rating: UL 94 HB
Number of Positions: 16 Position
