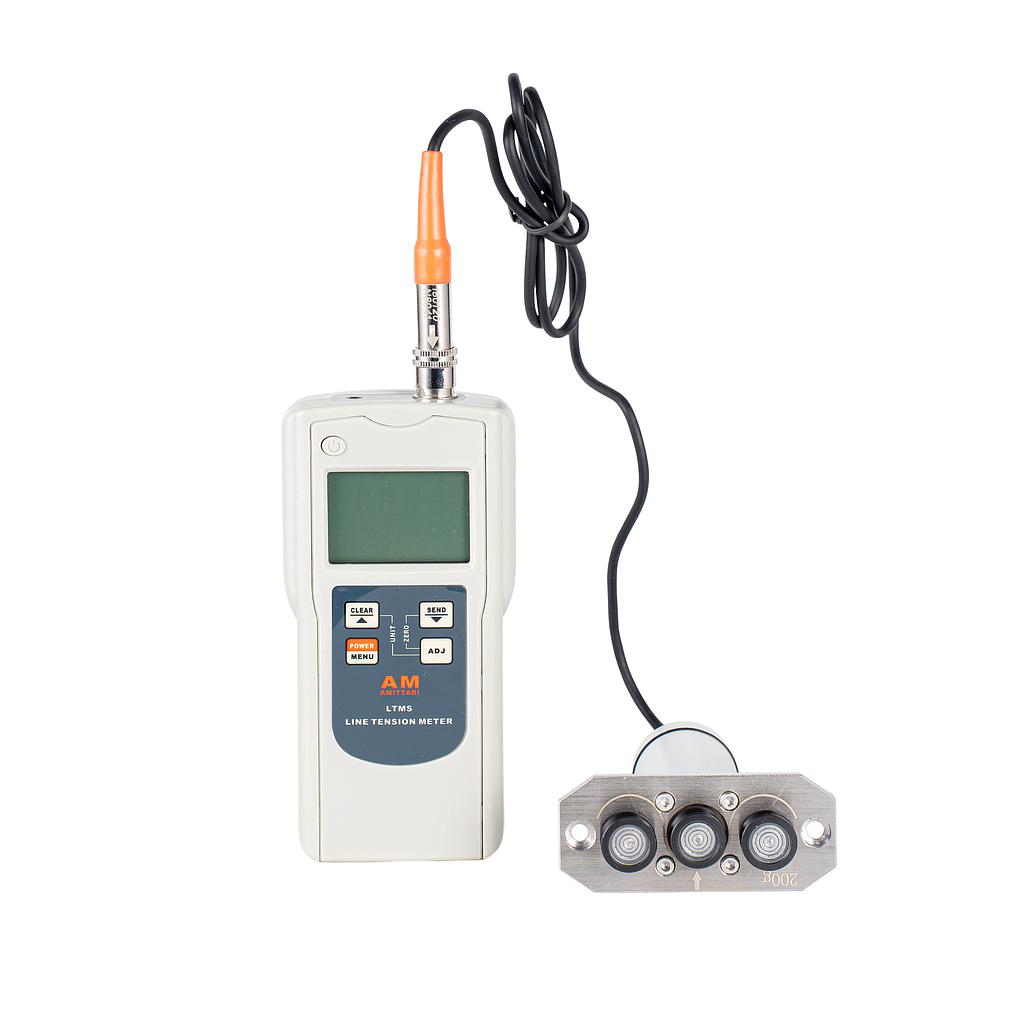

Amittari LTMS-20K Tension Meter (0~20.0kgf)

Tension Range: 0~20.0kgf

Tension Range:

Tension Range: 0~196N

Tension Range: 0~44Lbf

Resolution: 0.01kgf

Resolution: -

Resolution: 0.1N

Resolution: 0.1Lbf

Accuracy: ±1.5% or better

Unit: kgf, gf, N, Lbf

Measuring Principle: Strain gauge

Measuring Frequency: 16 msec (62.5 samples/sec)

Sensing Roller: Deflection of Sensing Roller (max.) 0.2mm

Overload Capacity: 150% of Full Scale

Temperature Coefficient: Zero: less than +0.3% FS/°C Span: less than +0.01% FS/°C

Display: Blue Back light LCD

Display Update Rate: 0.5, 1.0, 2.0 or 4.0 seconds, dip-switch selectable

Memory System: Current Value, Max. Value, Peak Value, Min Value

Overrange Indicator: Buzzer Alarm

Power Off: 10 Minutes Auto Power Off, Manual Power Off

Data Output: USB, Bluetooth

Roller Material: Stainless Steel (Standard); Plastic (Optional)

Maximum Speed: 2000 m/min

Operation Temperature: 0~40°C (32~104°F)

Operation Humidity: <80%

Power Supply: 4 x 1.5V AAA UM-4 Battery

Size: Main Unit: 140 x 70 x 31mm (5.5 x 2.8 x 1.2"); Sensor: 102 x 81 x 34mm (4.0 x 3.2 x 1.3")

Weight (Including Battery): 400g (14.11oz)

Standard Accessories: Main Unit; Sensor; Carrying Case; Operation Manual

Optional Accessories: USB Cable & Software ; Bluetooth Adapter & Software
