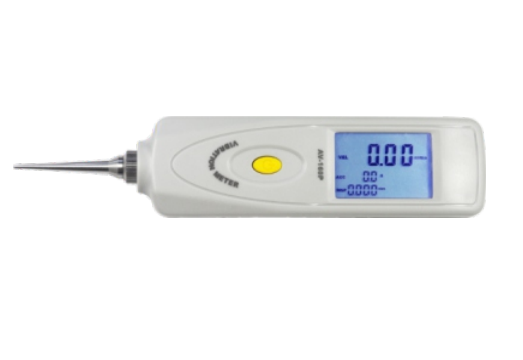

Amittari AV-160A Vibration Tester (0.1~400.0 m/s²)

Sensor: Piezoelectric Sensor

Range:

Acceleration: 0.1~400.0 m/s² Equivalent Peak; 0.3~1312 ft/s²; 0.0~40 g

Velocity: 0.01~400.0 mm/s True RMS; 0.004~16.00 inch/s

Displacement: 0.001~4.000 mm Equivalent Peak-Peak; 0.04~160.0 mil

Frequency Range:

Acceleration: 10Hz~10kHz

Velocity: 10Hz~1kHz

Displacement: 10Hz~1kHz

Rotation Rate Range: -

Frequency: 1~20,000 Hz

Accuracy: ±5% of reading ±2 digits

Operation Conditions: Temperature 0~50°C (32~122°F); Humidity <90%RH

Power Supply: 4 × 1.5V AAA Um-4 Battery

Size: 140 × 70 × 31 mm (5.5 × 2.8 × 1.2")

Weight: 130 g (without batteries)

Accessories: Main Unit, Piezoelectric Sensor, Powerful rare earth magnet, Stinger probe (Cone), Stinger probe (Ball), Carrying Case, Operation Manual; Optional: Headphones, USB Cable & Software , Bluetooth Adapter & Software

Datasheet
