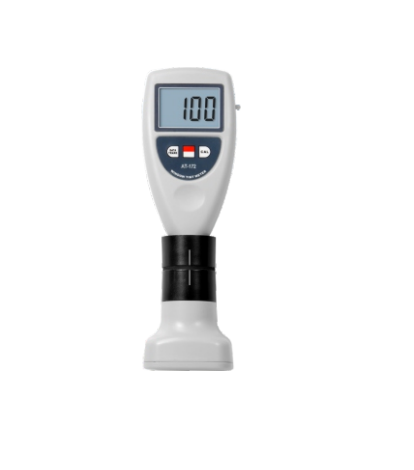

Amittari AT-173 Window Tint Meter (0~100%)

Measurement Range: 0~100%

Resolution: 0.1

Light Source: LED

Sample Thickness: Less than 10mm (0.4")

Accuracy: ±2%

Measurement Mode:

Visible Light Measurement

Ultraviolet Measurement

Infrared Measurement

Light Measurement Cycle

Ultraviolet Wavelength: 380nm

Visible Light Wavelength: 380~760nm

Infrared Wavelength: Central Wavelength 950nm

Sensor Rotation Angle: 0~340°

Operation Temperature: 0~50°C (32~122°F)

Operation Humidity: <90%

Power Supply: Main Unit: 4×1.5V AAA Um-4 Battery

Size: Main Unit: 184 × 70 × 30mm (7.2 × 2.8 × 1.2")

Weight (Without Battery): 160g (5.64oz)

Accessories: Main Unit, Testing Block, Carrying Case, Operation Manual; Optional: USB Cable & Software, Bluetooth Adapter & Software
