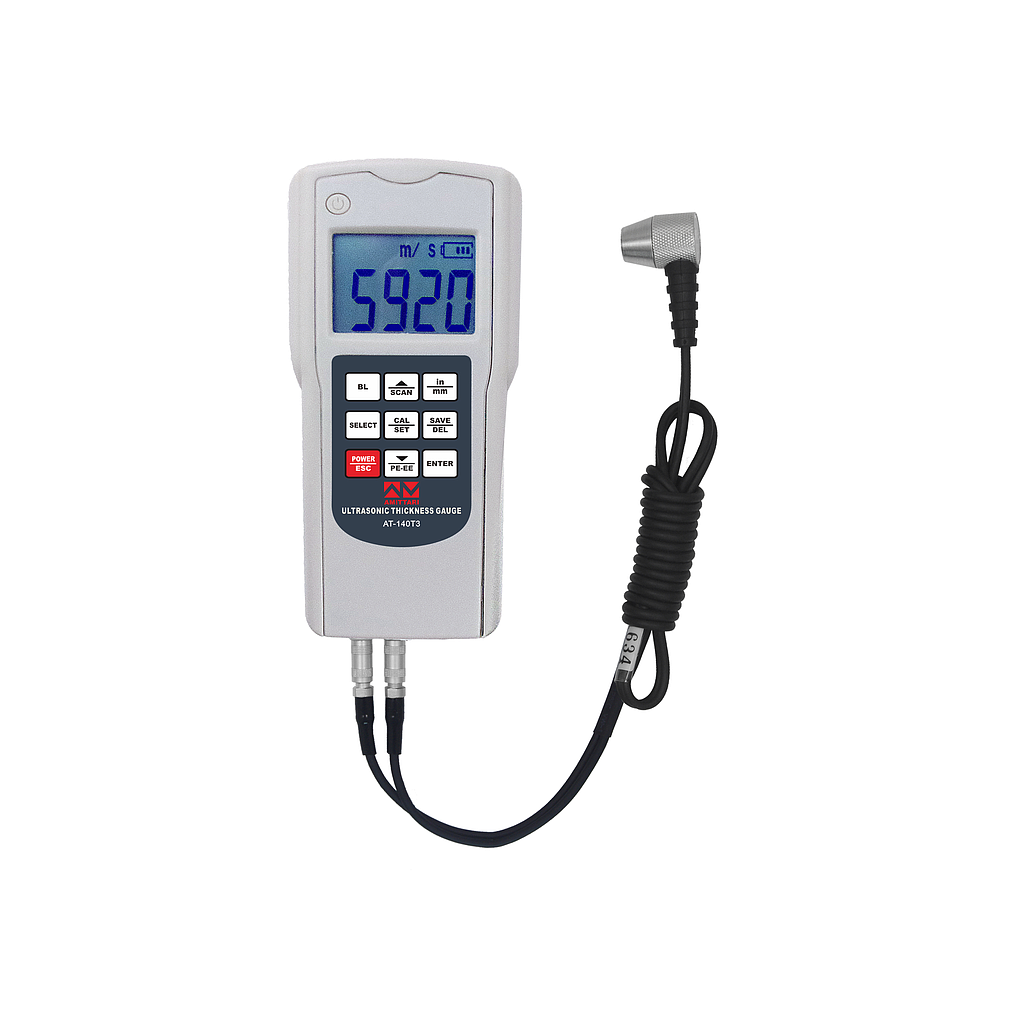

Amittari AT-140T6 Ultrasonic Thickness Gauge (0.65~600mm/ 3~60mm)

Unit System: Metric system or British system (optional)

Display: LCD with backlight

Range: Pulse-Echo mode: (0.65-600)mm (in Steel) Echo-Echo mode: (3~60)mm

Resolution: 0.1mm / 0.01mm / 0.001inch

Accuracy: ±(0.5%n + 0.05mm), depends on materials and conditions

Measurement Period: 4 times per second for single point mode and 10 times per second for scan mode

Sound Velocity: 1000m/s~9999 m/s

Unit System: Memory for up to 20 files(99 values for each file)of stored values

Working Mode: There are two working modes of thickness measurement: single mode and scan mode

Operating Conditions: Temperature:0~40ºC Humidity:<85%RH

Power Supply: 4x1.5V AAA(UM-4)Battery

Dimensions: 142mmx72mmx34mm

Weight: 175g(Not Including Batteries)

Standard accessories:

Main Unit

Standard Probe

Coupling Agent

Carrying Case(B04)

Operation Manual

Optional accessories:

RS-232C Data Cable with Software

Bluetooth adapter and software

Other Special-purpose Probe

Datasheet
