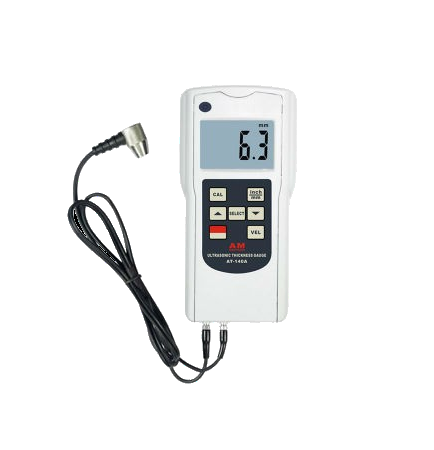

Amittari AT-140C Ultrasonic Thickness Gauge (0.75~400 mm)

Housing Material: Aluminum Alloy

Display: Large Screen LCD

Measuring Range: 0.75mm~400 mm ( 45 # steel, Depend on Probe )

Resolution: MPE:(0.01+H/200)mm/ MPE:+(0.1+H/100)mm

Accuracy: ±(0.5%n + 0.05mm), depends on materials and conditions

Sound Velocity: 500m/s~9,990 m/s

Lower Limit of Pipes: Φ15 x 2.0 mm Φ20 x 3.0 mm Determined By Transducer

Temperature: Temperature:0~40ºC Humidity:<85%RH

Power Supply: 2x1.5V AA (UM-3) Battery

Dimensions: 130mmx76mmx32mm

Weight: 340g (Not Including Batteries)

Standard accessories:

Main Unit

Standard Probe

Coupling Agent

Carrying Case(B04)

Operation Manual

Other Special-purpose Probe

Optional accessories:

RS-232C Data Cable with Software

Bluetooth adapter and software

Datasheet
