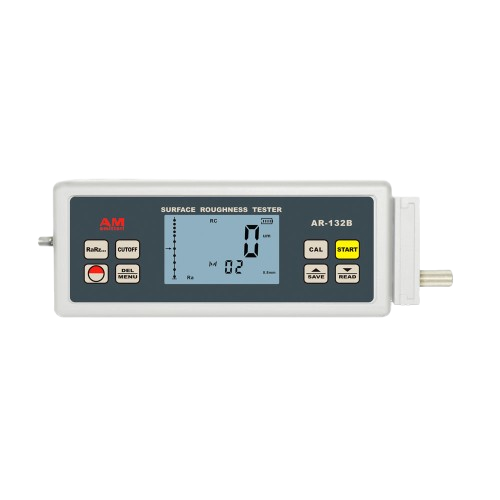

Amittari AR-132B Surface Profile Gauge (Ra/Rq: 0.005~16μm; Rz/Rt: 0.020~160μm)

Parameters: Ra, Rz, Rq, Rt

Measurement Range:

Ra: 0.005~16μm / 0.020~629.9μinch

Rq: 0.005~16μm / 0.020~629.9μinch

Rz: 0.020~160μm / 0.780~6299μinch

Rt: 0.020~160μm / 0.780~6299μinch

Accuracy: Not more than ±10%

Fluctuation of Display: Not more than 6%

Resolution:

0.001μm if reading < 10μm

0.01μm if 10μm ≤ reading < 100μm

0.1μm if reading ≥ 100μm

Evaluation Length: 1~5L Optional

Operation Temperature: 0~50°C (32~122°F)

Operation Humidity: <80%RH

Power Supply: Lithium Ion Battery (Rechargeable)

Size: 140×57×48mm (5.5 × 2.2 × 1.9")

Weight (Including Battery): 420g (14.82oz)
