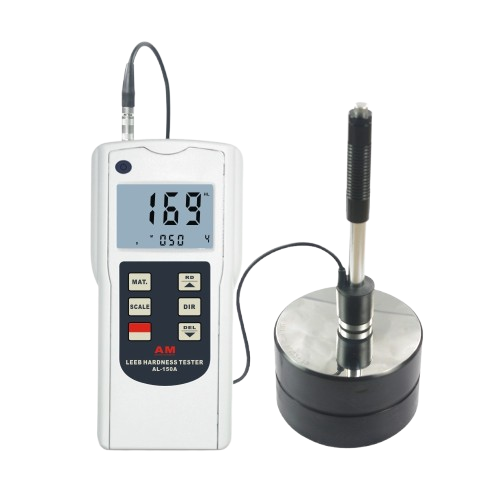

Amittari AL-150A Leeb Hardness Tester (200~900 HLD)

Accuracy: Display error ±0.8% at LD=900

Measuring Range: 200~900 HLD

Measurable Material: 9 different common materials

Operating Temperature: -10°C~50°C

Storage Temperature: -30°C~60°C

Relative Humidity: ≤90%

Size: 140x70x30 mm

Power Supply: 2x1.5vAAA Um-4 Battery

Weight: 130 g (Not including batteries)

Standard Accessories:

Main Unit

Standard Test Block

Measurement Sensor

Small Support Ring

Cleaning Brush

Carrying Case

Operation Manual

Optional Accessories:

Impact Body

Support Ring

USB data output

RS-232 data output

Bluetooth™ data output

Product Description

The Leeb Hardness Tester applicable for failure analysis of installed machinery or permanent parts of assembled systems, die cavity of molds, heavy work pieces, pressure vessel, steam generator and other equipment, testing surface of a small hollow space, inspection of bearing and other mass produced parts on a production line ,material identification in the warehouse of metallic materials and rapid testing in large range and multi-measuring areas for large-scale work piece.Surface Profile Gauge used in Shot blasting industry, the printing industry, Spraying Anti Corrosion Industry, According to the selected measurement conditions are calculated from the corresponding parameters, in the liquid crystal display clearly shows all the measured parameters.

Product Feature

* Transform between HL/HRC/HRB/HB/HV/HS.

* Store the latest 50 groups measurements.

* Select measured material and way by key.

* Can show measurements repeatedly to remove the large errors.

* Use USB data output with connection PC.

* Provide Bluetooth data output choice.
