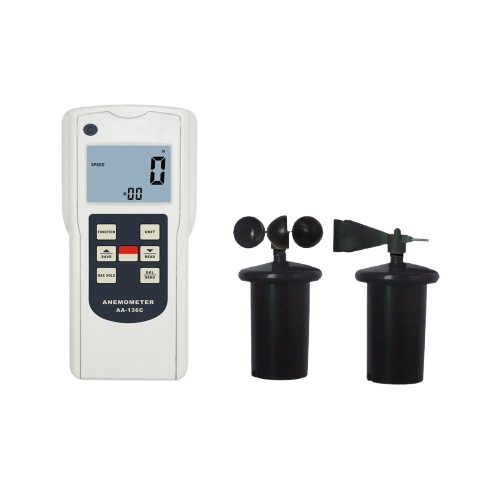

Amittari AA-136C Multi Functional Anemometer (0.4~45.0m/s; 0~9999CMM, direction probe)

Air Velocity

m/s (meters per sec): Range: 0.4~45.0; Resolution: 0.1 m/s; Accuracy: ±(2%+0.1m/s)

km/h (kilometers/hour): Range: 1.4~162.0; Resolution: 0.1 km/hr; Accuracy: ±(2%+0.1km/hr)

ft/min (feet per minute): Range: 80~8860; Resolution: 0.1 ft/min; Accuracy: ±(2%+1ft/min)

knots (nautical MPH): Range: 0.8~88.0; Resolution: 0.1knots; Accuracy: ±(2%+0.1knots)

Air Flow

CMM (cubic meters/min): Range: 0~9999; Resolution: 0.001 to 1; Accuracy: ±(2%+0.1m³/min)

CFM (cubic ft/min): Range: 0~9999; Resolution: 0.001 to 1; Accuracy: ±(2%+0.1ft³/min)

Beaufort Scale: Range: 0~12; Resolution: 0.1; Accuracy: ±0.5

Direction (AA-136C Only): Range: 0~360°; Resolution: 22.5°; Accuracy: ±22.5°

Wave Height (m): Range: 0~14; Resolution: 0.1; Accuracy: ±0.1

Air Temperature :

Range: 32~140°F; Resolution: 0.1°F; Accuracy: 0.9°F

Range: 0~60°C; Resolution: 0.1°C; Accuracy: 0.5°C

Display: 0.5" (13mm) 4-digit LCD

Measurement Units: Air Velocity: m/s, km/h, ft/min, knots; Air Flow: CMM (m³/min); CFM (ft³/min); Beaufort Scale: Force; Wave Height: m; Direction: from the North direction; Temp: °C & °F

Data Hold: Maximum Value

Data Memorized: 24 Groups

Sampling Rate: Reading Per Second Approx.

Sensor:

Air Velocity/Flow Sensor: 3-Cup Probe;

Direction Probe: Low Friction Probe;

Temperature Sensor: Precision Thermistor

Automatic Power Off: 0-9 Minutes Set by Users

Operation Temperature: 0~50°C (32~122°F)

Operation Humidity: <80% RH

Power Supply: 4x1.5V AAA (UM-4) Battery

Size

Main Unit: 140x70x31mm (5.5x2.8x1.2")

3 Cup Probe: 65x65x115mm (2.6x2.6x4.5")

Direction Probe: 86x69x115mm (3.4x2.7x4.5")

Vane Probe: -

Weight (Including Battery): 375g (13.23oz)

Standard Accessories: Main Unit; 3-Cup Probe; Direction Probe; Carrying Case; Operation Manual

Optional Accessories: USB Cable & Software; Bluetooth Adapter & Software
