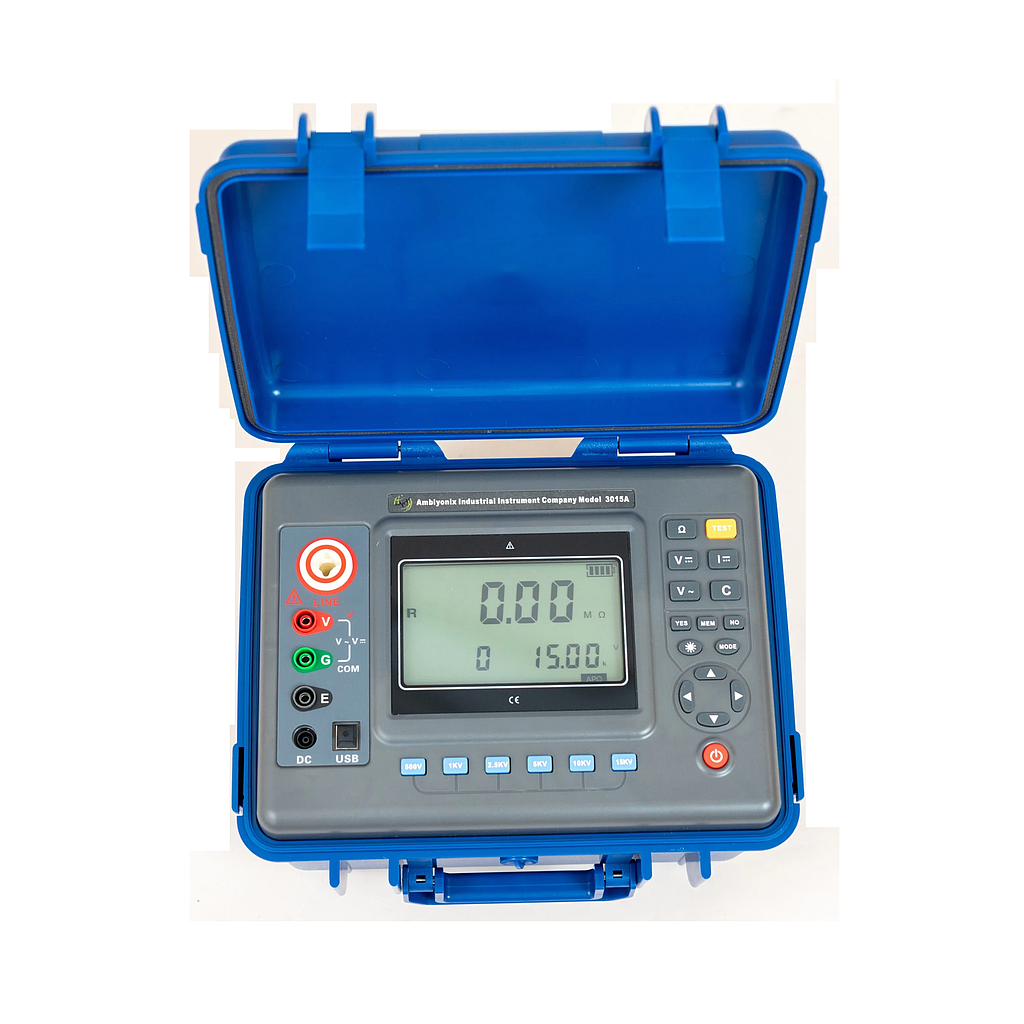

Amblyonix 3015A Megohmmeter (0.01MΩ ~ 2TΩ; 15kV)
ManufacturerAmblyonix(View more products from this manufacturer)
Model3015A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Test Voltage Ranges: 500V, 1000V, 2500V, 5000V, 10kV, 15kV
Test Voltage Accuracy: ±10%
Short Circuit Current: ≥6mA
Resistance Range: 0.01MΩ to 2TΩ
DC Voltage Range: 0 to 1000V
AC Voltage Range: 0 to 750V
DC Current Range: 100pA to 6mA
Capacitance Range: 10nF to 50uF
Display: 4-bit large format LCD with adjustable backlighting
Timer: Selectable for time dependent measurements
Power: 12.6V Lithium-ion battery
Operating Environment: 14°F to 122°F @85% RH
Instrument Dimensions: 10.9” x 9.0” x 6.0”
Instrument Weight: 6.0lbs
