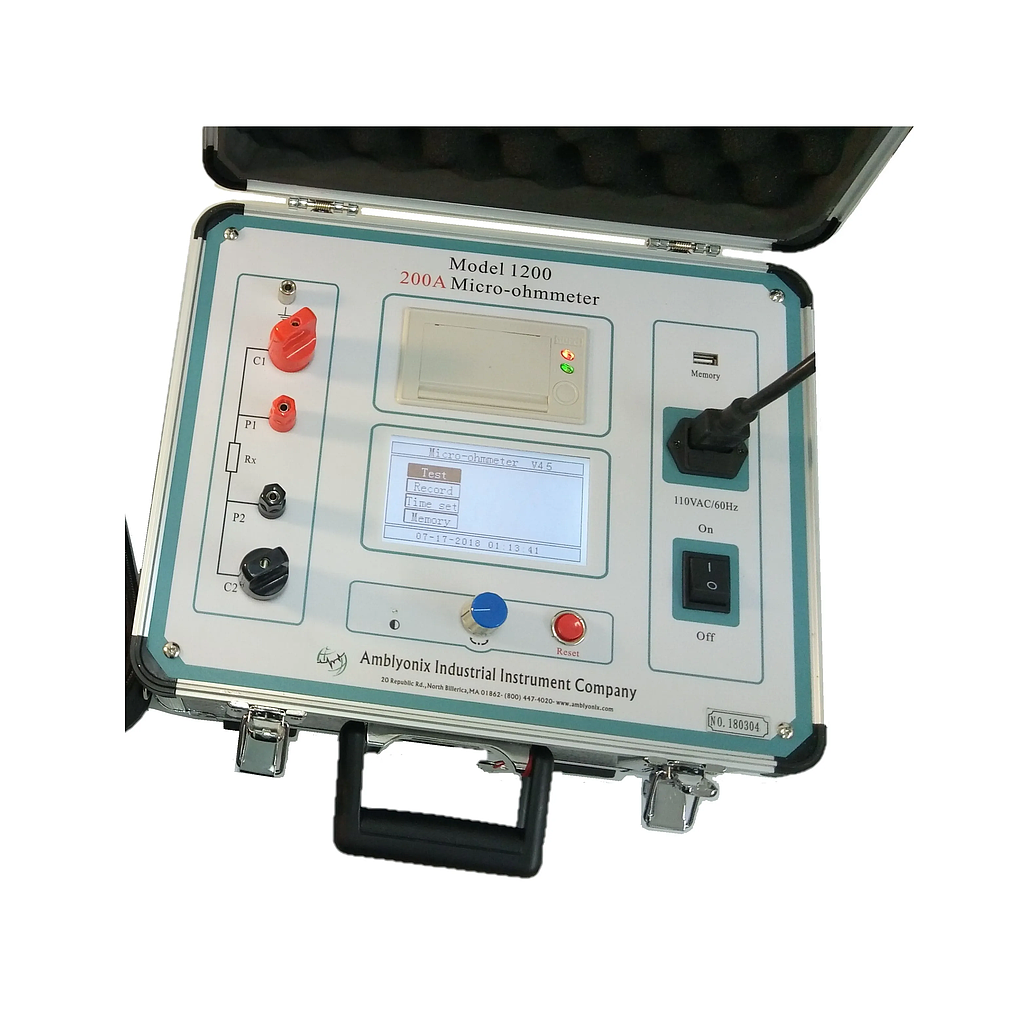

Amblyonix 1200 Micro-ohmmeter (0 ~ 2999.9 μΩ; 200A)

Measurement range: 0 to 2999.9 μΩ

Resolution: 0.01 μΩ (0 to 99.99 μΩ), 0.1μΩ (100.0 to 2999.9 μΩ)

Current DC, to 200A (selectable 50, 100, 150 and 200 A ranges)

Accuracy ±(0.5% reading+2 digit)

Continuous working time from 5 to 599 seconds

Display: LCD

Communications: USB

Power supply: 120 VAC ±10%, 60 Hz

Power: 1200W

Storage capacity: 200 measurements

Operating environment: Temperature 14°F to 104°F , humidity:≤80%RH

Weight 24.25 lbs. (not including accessories)
