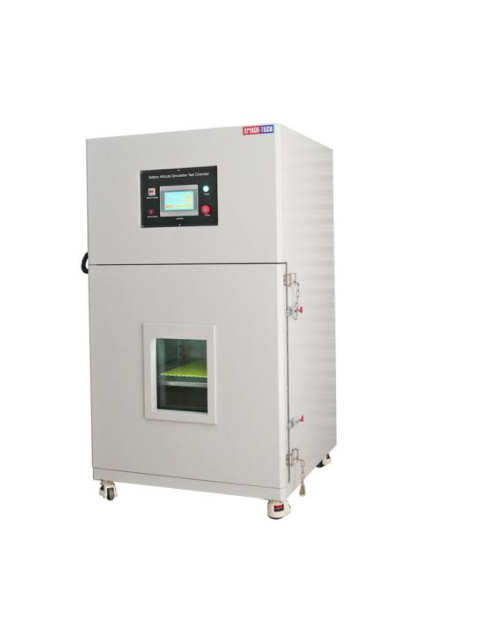

Amade-Tech AT-L5005-125L Battery Altitude Simulation Test Chamber (5 kPa ~ 101.3 kPa)

Internal chamber material: SUS304# stainless steel in thickness of 6 mm and the outside is reinforced by square pipe welding.

External chamber material: Cold rolled steel sheet in thickness of 1.5 mm with baking varnish treatment

Pressure range: 5 kpa ~ 101.3 Kpa, commonly used test low-pressure: 11.6 Kpa

Temperature range: Room Temperature

Inner box size: (L) 500 x (W) 500 x (H) 500 mm

Observation window: Double-layer tempered glass of 20 mm in thickness

Control mode: PLC + Touch screen

Vacuum detection and display: Digital vacuum gauge

Pressure fluctuation: ≤5%

Air pressure descent rate: Decrease from normal atmospheric pressure to 11.6Kpa in about 20 minutes

Timing control: Digital, 0 ~ 9999H/59M/59S

Safety devices: Over-current protection fuse, built-in pre-overpressure safety device, using pressure reducing valve to achieve over-pressure safety protection, automatic alarm in case that operation error occurs or the timing is up

Control System Contains: Power switch, power indicator, lighting, vacuumize/pressure release switch, vacuum gauge, timer switch, timer, alarm (sound and light prompt) etc

Power supply: 1 phase, AC 220V/110V, 50/60Hz

Accessories/Tools: Stainless steel sample shelf 1 pc
