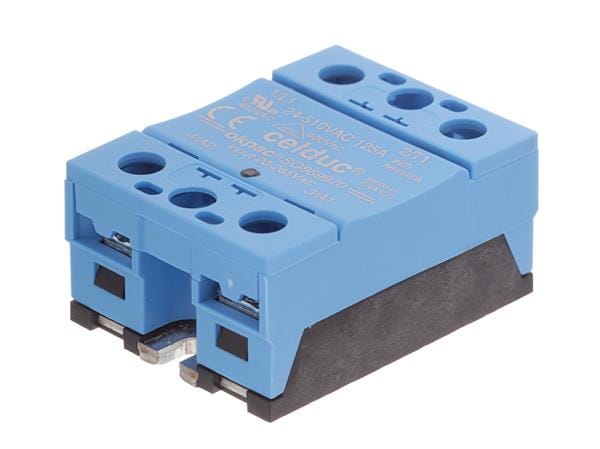

Altech SO869970 SSR Single Phase Power Solid State Relay
ManufacturerAltech(View more products from this manufacturer)
ModelSO869970
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 45 mm
Height: 30 mm
Length: 58.5 mm
IP Rating: IP20
Output Type: Zero Switching
Unit Weight: 112.097 g
Input Current: 5 mA to 10 mA
Mounting Style: Panel Mount
Termination Style: Screw
Relay Contact Form: 1 Form A (SPST-NO)
Load Current Rating: 125 A
Load Voltage Rating: 24 VAC to 510 VAC
Control Voltage Range: 20 VAC to 265 VDC, 20 VDC to 265 VDC
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
