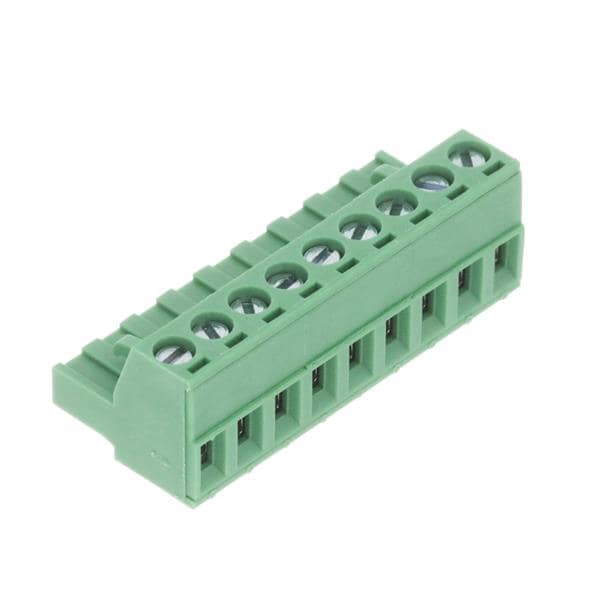

Altech SH09-5,08 Plugs PCBPlug 5.08mm
ManufacturerAltech(View more products from this manufacturer)
ModelSH09-5,08
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Green
Pitch: 5.08 mm
Width: 15.5 mm
Height: 18.85 mm
Length: 45.7 mm
Compliance: Nickel
Unit Weight: 19.082 g
Current Rating: 12 A
Mounting Angle: Horizontal
Mounting Style: Through Hole
Voltage Rating: 300 V
Wire Gauge Max: 14 AWG
Wire Gauge Min: 30 AWG
Contact Plating: Nickel
Contact Material: Brass
Housing Material: Polyamide (PA)
Wire Gauge Range: 30 AWG to 14 AWG
Wire Orientation: Horizontal
Connection Method: Plug-in
Termination Style: Solder Pin
Flammability Rating: UL 94 V-0
Number of Positions: 9 Position
