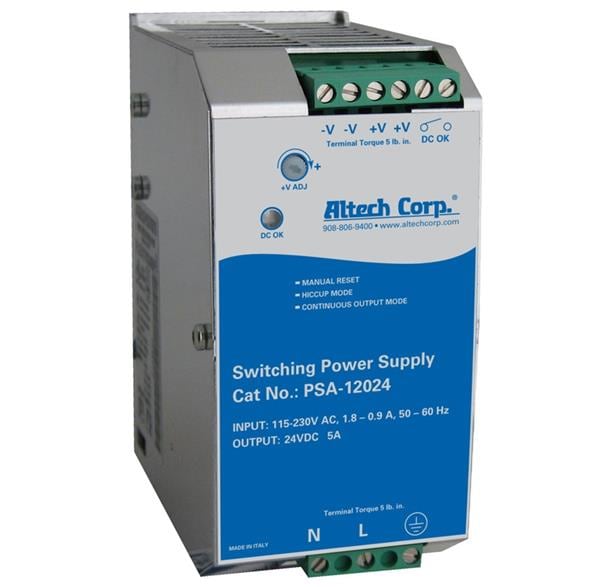

Altech PSA-12024 Switching Supplies 120W 24VDC 5A Single Phase

Width: 55 mm (2.165 in)

Height: 110 mm (4.331 in)

Length: 105 mm (4.134 in)

Industry: Industrial

Dimensions: 55 mm x 110 mm x 105 mm

Input Type: 1-Phase / Single Phase

Output Power: 120 W

Input Voltage: 90 VAC to 135 VAC, 180 VAC to 264 VAC

Mounting Style: DIN Rail Mount

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 5 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
