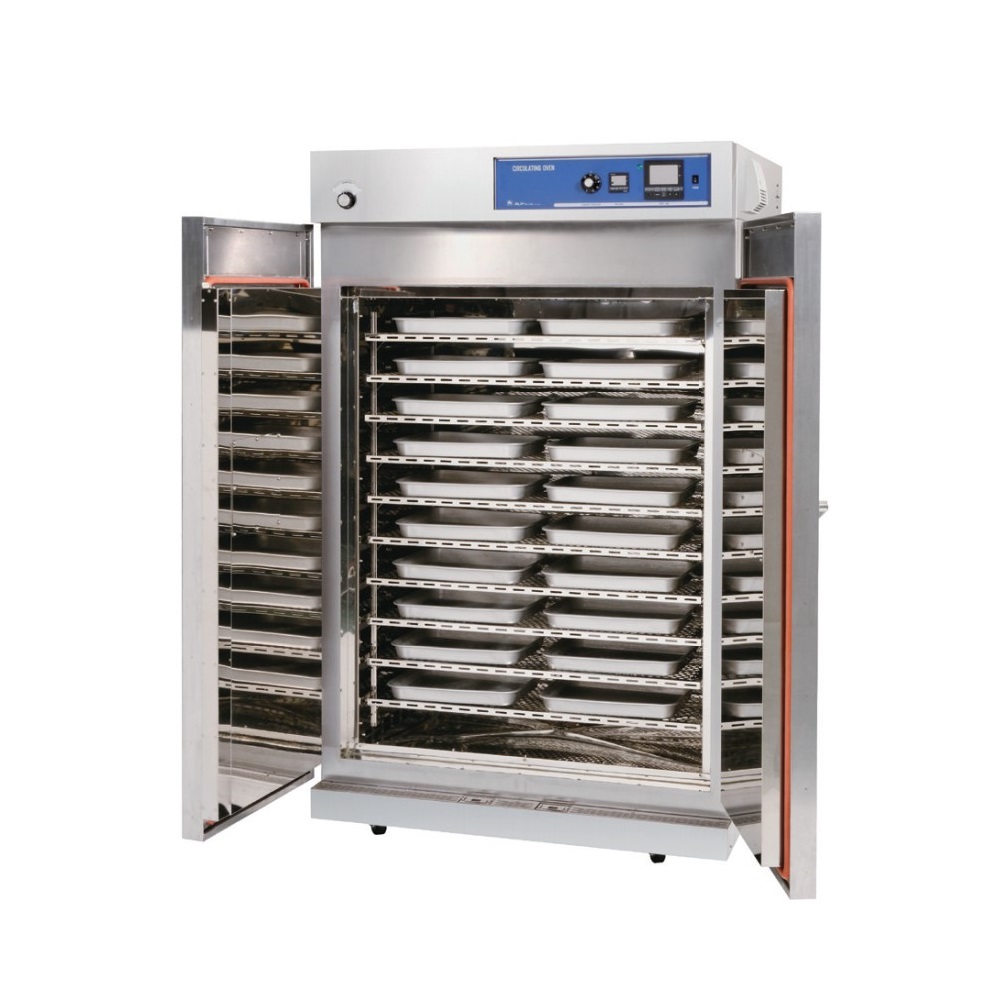

ALP PW-120HG Drying Oven (+10℃ - 200℃, 780L)

Inner dim. W×D×H/ Cap: 930×700×1200mm/780L

Outer dim. W×D×H/Weight: 1160×960×1850mm/310kg

Temperature range: Room temperature +10℃ - 200℃

Temp. distribution accuracy: ±1.5℃ (at 70℃), ±2.0℃ (at 150℃)

Ciruclating system: Horizontal flow

Program operation: 1 memory, Max. 8 steps

Door: Double doors

Sensor port: φ48mm, front left side

Safety devices: Overheat prevention device, Independent overheat prevention device, Sensor/Heater disconnection alarm, Motor overload safety device, Leakage breaker

Power demand/Current: AC220V/230V/240V, 15/14/14A

Shelves (max. load): 4pcs.(20kg/pc.)

Datasheet
