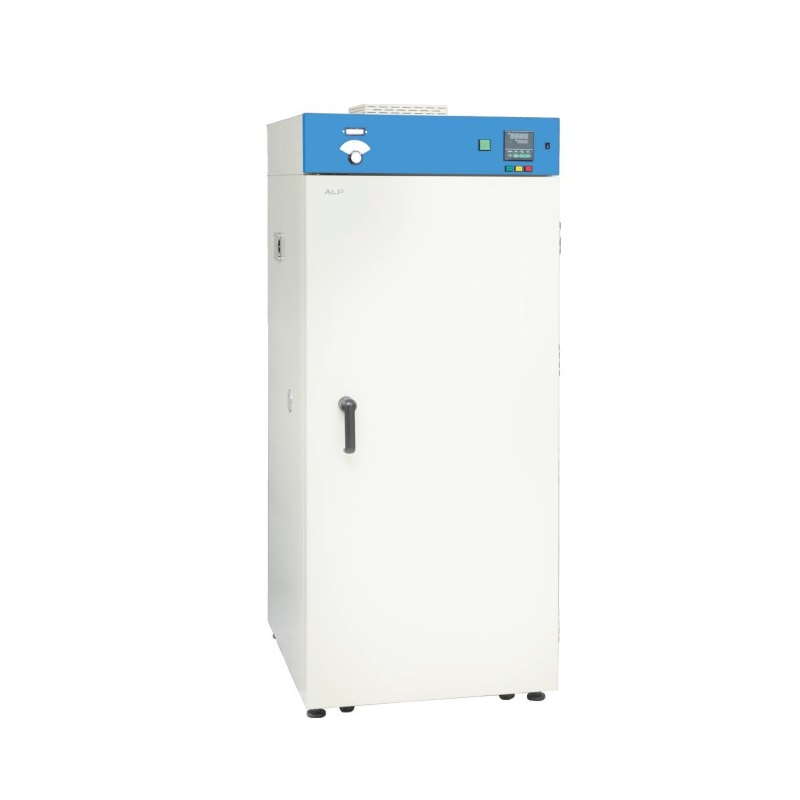

ALP DCH-120HM Clean Oven (+50℃-300℃, 360L)

Inner dim. W×D×H/ Cap.: 600×500×1200mm/360L

Outer dim. W×D×H/Weight: 840×1140×1990mm/330kg

Temperature range: Room temperature +50℃-300℃

Temp. distribution accuracy: ±5.0℃ (at 300℃)*

Ciruclating system: Horizontal flow

Program operation: 8 memory, Max. 32 segment

Cleanliness: Class 5 (ISO14644-1, When the temperature is stable /Target particle size : 0.5μm )

Filter: Heat-resistant HEPA Filter

Door: Single door (left side opening door)

Sensor port: Φ48mm×1 Front left side

Safety devices: Overheat prevention device, Independent overheat prevention device, Overheat prevention device for Heater room, Door switch, Thermal relay, Temp. sensor disconnection alarm, Leakage breaker, Thermostat in operation panel

Power demand/Current: AC 220/230/240V / 40A

Shelves (max. load): 3 pcs. (15kg/pc.)

Datasheet
