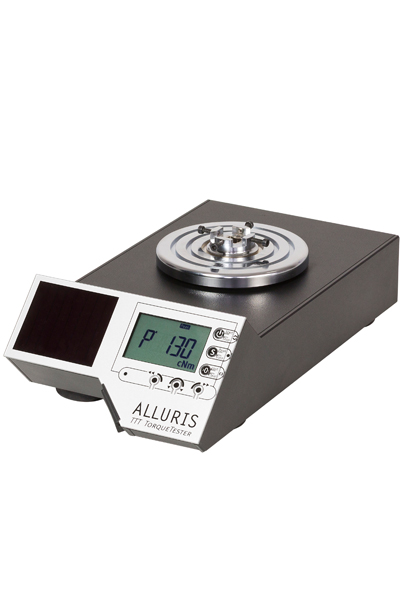

Alluris TTT-300B2 Torque Tool Tester to verify and calibrate, USB (2Nm)

Measuring Range M(n)  (Nm): 2

Resolution (Nm): 0.002

Accuracy (% ): +/- 0.5 Class 1 (DKD-R 10-8)

Display range (% ):  120 of M(n)

Diplay Type : LCD. 5-digit. 29 mm high

Interface:

USB : USB 2.0 data communication and supply

Hirose:  Limit/overload signals. digital I/O's

Software TTT_Certify:  Quick check or creation of calibration certificates

Supply Type : Internal solar cell with storage capacitor / via USB

Temperature (operation)  °C:  0...40

Housing:

L x W x H : 280 x 147 x 79

Weight (kg): 5

Fixing:  On table top up to 30 mm thick by means of threaded bolt and knurled nut

Protection class (EN 60529) Cable not plugged : IP42 (protection against falling dripping water)

Operating mode:

Standard : Display of current value

Peak (click + max) : Peak value display (drag pointer function)

Quickcheck : Five follow-up measurements with averaging

Limit:  Two separately selectable limits with upper and lower limit value

Datasheet
