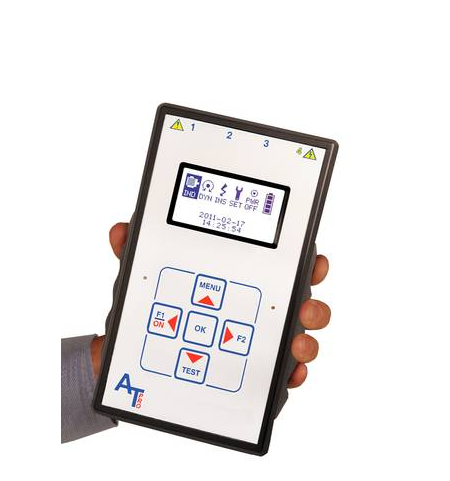

All Test Pro AT33 IND MOTOR TESTER (800hz, 999 MΩ, 1000V)

Test Frequencies

50, 100, 200, 400, 800 Hz

Test Value Static / Reference Value Static

0.01 – 10000 ±1%, (Dimensionless calculated value)

Stator Test Dynamic

Repeatability ±1%, (of measured data and calculated deviations)

Rotor Test Dynamic

Repeatability ±2%, (of measured data and calculated deviations)

Resistance

0.01 – 999 Ω measurement range

0.01 – 99.9 Ω ±1%, Max Resolution: 0.01 mΩ

100 Ω - 500 Ω ±1.5%, displayed as whole numbers

501 Ω - 999 Ω ±2.5%, displayed as whole numbers

Relative Accuracy “Phase to Phase” ± 0.1%

True 4-wire Kelvin measurement

(Compensation for thermoelectric offset voltages)

Dissipation factor - DF (frame – stator)

1 – 100% measurement range (expressed as a percentage)

1 – 10% ±0.5 (C = 10 – 1000 nF)

10 – 30% ±1.0

(This specification is based on battery operation and

USB not connected to PC)

Capacitance (frame – stator)

2 – 2000 nF measurement range

10 – 2000 nF ±5%

(This specification is based on battery operation and

USB not connected to PC)

Insulation Resistance

0 – 999 MΩ @1000V, 0 – 500 MΩ @500V

1 – 100 MΩ ±3%, all other values ±5%

Enclosure

Material - Polycarbonate, UL94-V2

Safety

According to IEC 61010-1 cat.III 1000V

Approvals

CE

Keyboard

Sealed tactile touch, XL size keys

Accessories (included)

3x Test Leads with Kelvin Clips and push-pull connectors

1x Test Lead with 4mm safety plug and MC “Dolphin” clip

Charging adapter, Universal input type 100-240VAC,

output 9VDC @ 1.7A

Attaché type hard case with pre-cut foam liner

User Manual on CD
