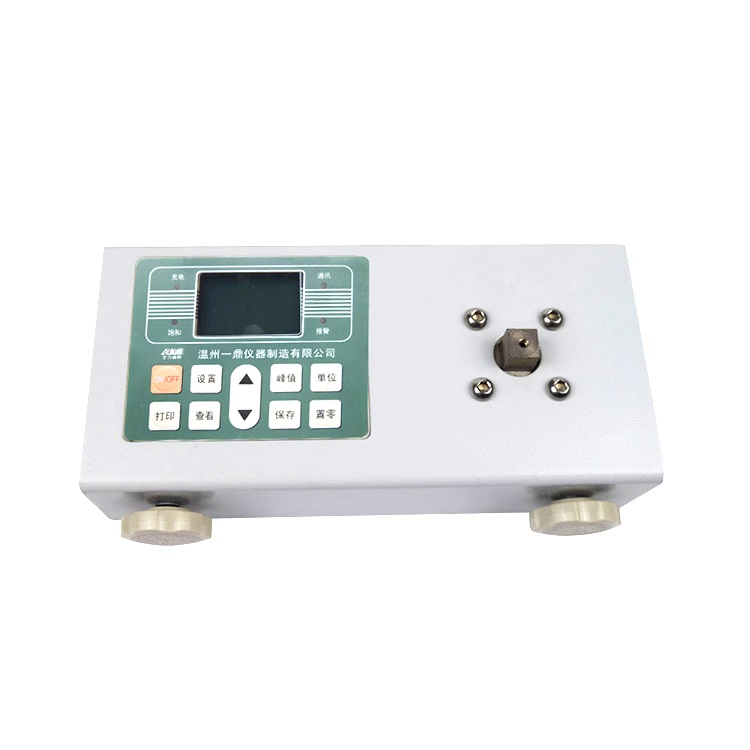

ALIYIQI ANL-20B Economic Torque Tester (2.00~20.00N.m, 0.01N.m)

Torque measurement range:

- N.m: 2.00 ~ 20.00

- kgf.cm: 20.39 ~ 203.9

- ft.lbf: 1.475 ~ 14.75

- in.lbf: 17.70 ~ 177.0

Index value:

- N.m: 0.01

- kgf.cm: 0.1

- ft.lbf: 0.01

- in.lbf: 0.1

Accuracy: ± 1%

Transmission function: Support USB transmission

Operating mode: First peak / real-time mode / peak hold

Unit selection: N.m / kgf.cm / ft.lbf / in.lbf

Operating temperature: 5℃~40℃

Storage temperature: -20℃~70℃

Humidity: 90% without condensation

Power supply: 7.4V lithium battery

Charger: Input: AC 220V 50HZ Output: DC 12V 300 / 500mA

Weight (Kg): 1.58
