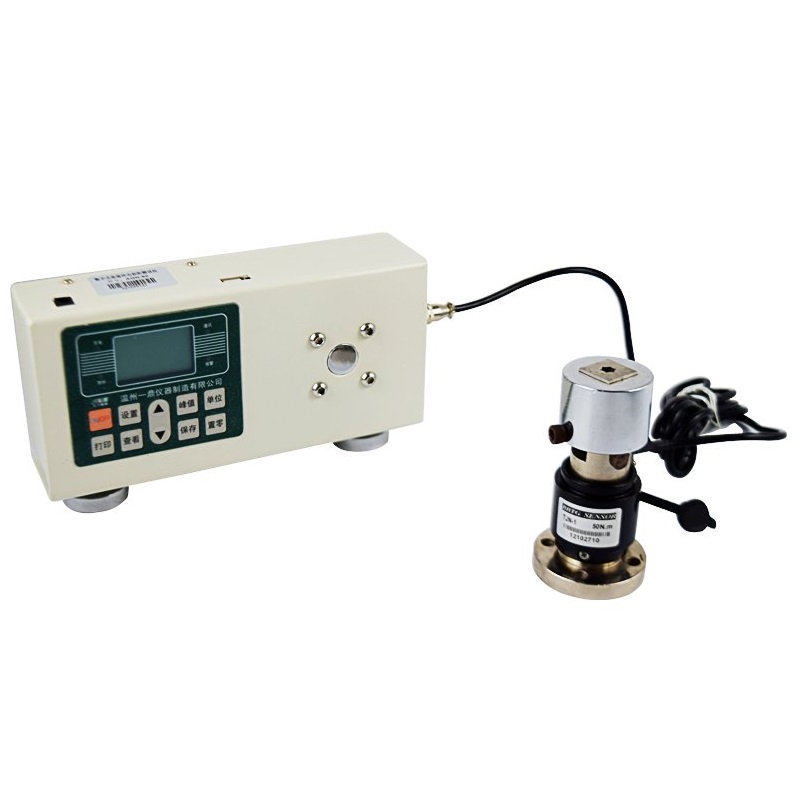

ALIYIQI AGN-2000 High Speed Impact Torque Tester (2000.0/0.1N.m, no printer)

Measuring range/ Minute Degree:

- N.m: 2000.0/0.1

- Kg.cm: 20420/1

- lb.in: 17724/1

Accuracy: ± 1%

Peak sampling frequency: 2000HZ

Test speed: ≤15000rpm

Power supply: 8.4V 1.2VX7 Ni-Cyan battery pack

Charging time: 4~6 hours

Battery continuous use time: About 10 hours

Battery Life: ≥300 times

Size:

- With printer: 230mm × 95mm × 180mm

- Without printer: 230mm × 70mm × 125mm

Net Weight: With printer: 8.5KG Without printer: 6.5KG

Power Adapter:

Input: AC 220V 50HZ Output: DC 10V 300mA
