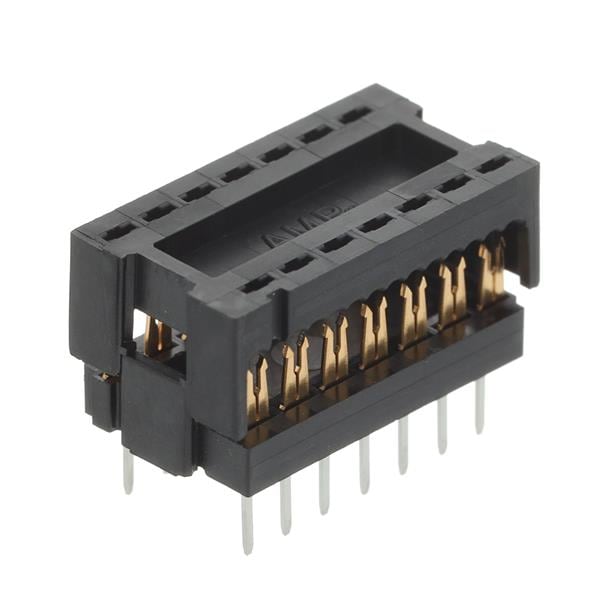

Alcoswitch - TE Connectivity 5746613-2 Ribbon Cable .1CL DIP PLG 2X07P
Model5746613-2
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 2.54 mm (0.1 in)
Application: Wire-to-Board
Row Spacing: 2.54 mm (0.1 in)
Unit Weight: 1.775 g
Contact Type: Tuning Fork
Contact Gender: Pin (Male)
Mounting Angle: Straight
Mounting Style: Through Hole
Number of Rows: 2 Row
Contact Plating: Gold
Contact Material: Phosphor Bronze
Housing Material: Thermoplastic
Termination Style: Solder Pin
Number of Positions: 14 Position
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 65 C
