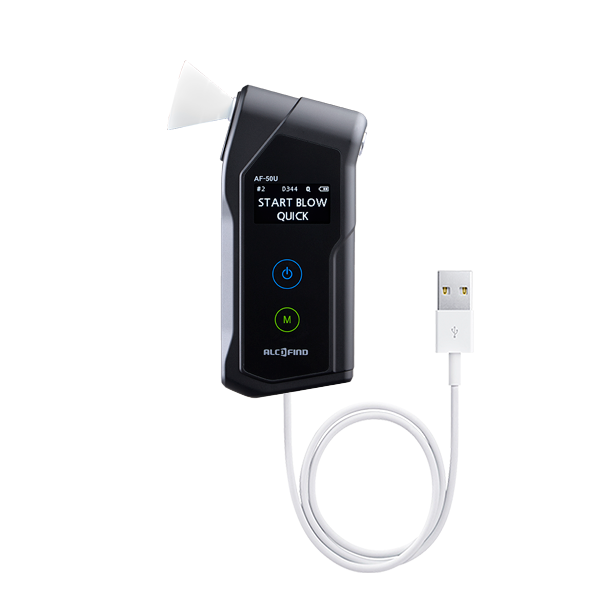

Alcofind AF-50U Digital Breathalyzer (0~0.5%BAC, 0~5‰, 0~2.5mg/L)

Specifications:

- Measurement range: 0.000 ~ 0.500%BAC

0.00 ~ 5.00‰

0.00 ~ 2.50mg/L

- Sensor: Premium Fuel Cell Sensor

- Accuracy (Normal Mode): ±0.005%BAC (at 0.100%BAC, at 25℃)

±0.05‰ (at 1.00‰, at 25℃)

±0.025mg/L (at 0.50mg/L, at 25℃)

- Analysis time (at 25℃): Quick Test Mode: approx. 2.5s (at 0.000%BAC), approx. 8s (at 0.050%BAC)

Normal Test Mode: approx. 4s (at 0.000%BAC), approx. 8s (at 0.050%BAC)

*Analysis time may vary depending on the test condition and environment.

- Test mode: Dual Mode (Quick/Normal)

- Alarm level for quick test mode

Settable range:

0.010 ~ 0.050%BAC

0.10 ~ 0.50‰

0.05 ~ 0.25mg/L

- Display: OLED (128x64 pixel)

- Power supply: AF-50U – USB 5V

ID card reader: USB 5V

Camera: USB 5V

Fingerprint reader: USB 5V

- Demensions (WxHxD): 60x128x24mm

- Weight: 82g (including batteries)

- Calibration period: every 6 months

- Operating temperature:-5 ~ 40℃

Contents:

​- Calibration reminder

- ALCOFIND AF-50U breathalyzer

- ALCOFIND PC-software

- Mouthpiece for Quick Test x 5

- Mouthpiece for Normal Test x 20

- Camera (Optional)

- ID card reader or Fingerprint reader (Optional)

- Instruction manual
