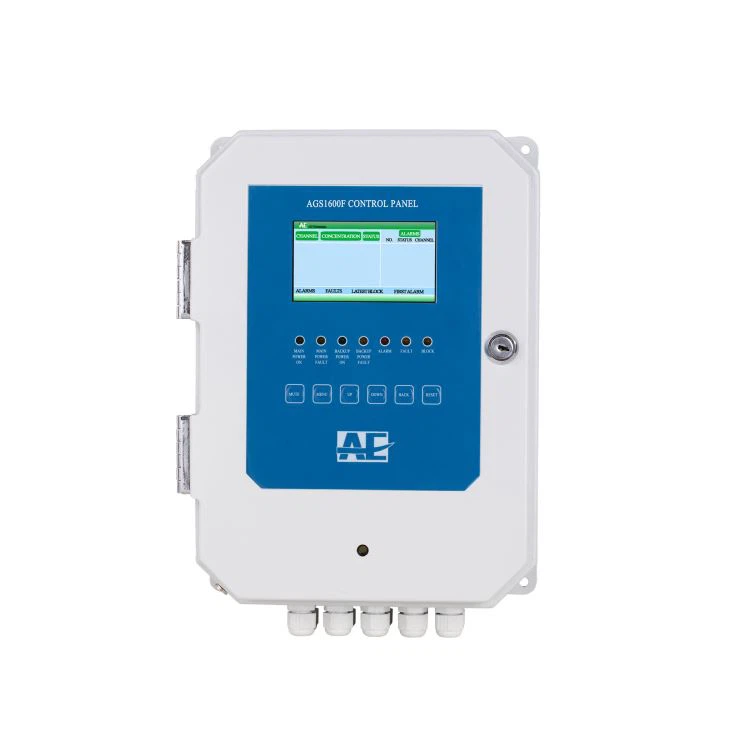

AIYI AGS1600F 4-Channel Control Panel

Function

Channels: 4

Suitable Detector: Combustible gas detector in 4–20 mA only

Electric

Power Supply: 220 VAC

Power Consumption: ≤ 6 W

Signal Input: 4–20 mA

Signal Output: RS485

Wiring: Three-wire

Suitable Cable: RVVP 3 × 1.5 mm²

Relay Output: 3 passive relay (250 VAC / 5 A; 30 VDC / 5 A)

Display & Operation

Display: Color LCD screen, resolution 480 × 272

Indicator Light: Alarm, fault, power, power fault, backup power fault

Operation Method: Button

Environment

Operating Temperature: 0 ℃ ～ 40 ℃

Operating Humidity: 10 ～ 95 % RH non-condensing

Operating Pressure: 80 – 120 kPa

Structure

Body Material: Carbon steel with electrostatic spraying

Weight: About 6 kg

Dimensions: 345 × 230 × 105 mm (H × W × D)

Certificates

CCCF: 2025081801000310

SIL: SIL2
