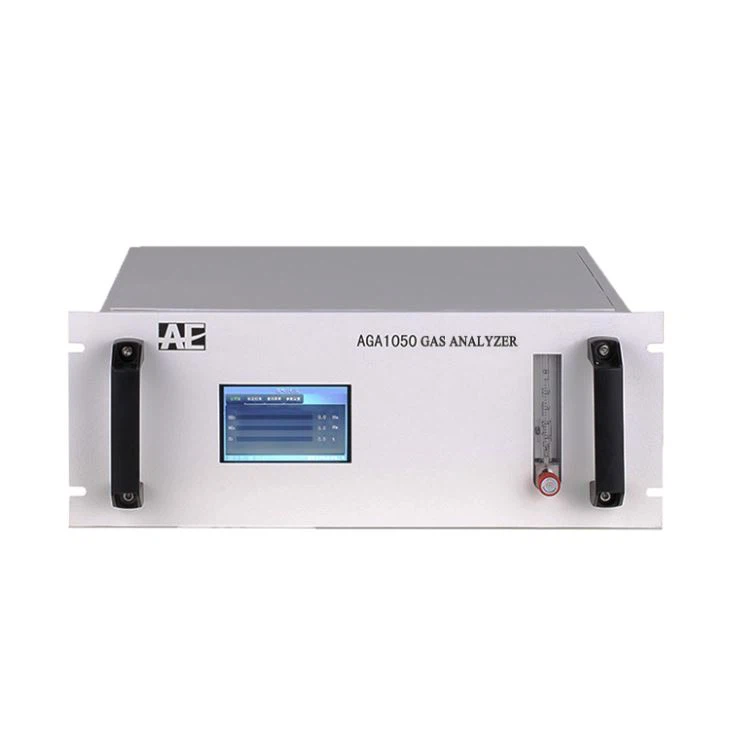

AIYI AGA1050 Flue Gas Analyzer

Function

Measure Range: SO₂: 0–50 ppm; NO: 0–100 ppm; O₂: 0–30 % VOL

Principle: DOAS (SO₂, NO); ECD (O₂)

Accuracy: ±2 % F.S.

Resolution: 1 ppm / 0.1 % VOL

Repeatability: 2 %

Zero Drift: ±2 % / 7 days

Span Drift: ±2 % / 7 days

Response Time: ≤45 s (T90)

Operating Temperature: 0 °C – 40 °C

Warm-up Time: ≤30 mins

Electric

Display: Color LCD 800 × 480

Power Supply: 220 VAC / 50 Hz

Power Consumption: ≤100 W

Signal Input: 4–20 mA, digital relays

Signal Output: 4–20 mA, RS485, 8 relays

Sampling

Flow Rate: 0.5 L/min

Humidity: 0–95 % RH

Oil Mist / Other Mist: <2.0 mg/m³ (filter is required if over 2.0 mg/m³)

Solid Particles: <2.0 mg/m³ (filter is required if over 2.0 mg/m³)

Structure

Connection: 1 pc CEE power socket; 2 pcs DB25 signal output; 1 pc RS485 DB9 adaptor; φ6 gas inlet; φ6 gas outlet

Body Material: Carbon steel

Dimensions: 490 × 180 × 430 mm (H × W × D)

Weight: About 13.8 kg

Certificate

EX: 2018CA0067-32

SIL: SIL2
