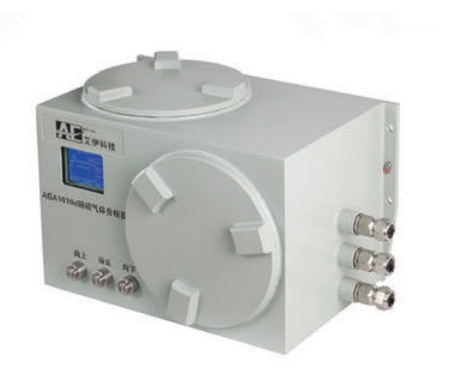

AIYI AGA1010d Paramagnetic Oxygen Analyzer

Explosion-proof

Function

Measure Range: O₂: 0–5 % / 15 % / 30 % / 100 % VOL customized

Principle: Paramagnetic

Accuracy: ±0.1 % VOL

Resolution: 0.01 % / 0.1 % VOL based on the range

Repeatability: ±0.5 %

Zero Drift: ±0.5 % F.S. / 7 days

Span Drift: ±0.5 % F.S. / 7 days

Response Time: ≤5 s (T90)

Operating Temperature: 0 °C – 40 °C

Warm-up Time: ≤30 min

Electric

Display: Monochrome LCD 320 × 240

Power Supply: 220 VAC / 50 Hz

Power Consumption: ≤100 W

Signal Output: 4–20 mA, RS485, and 2 relays

Sampling

Flow Rate: <0.2 L/min

Humidity: 0–95 % RH

Oil Mist / Solution Mist: <2.0 mg/m³ (filter is required if over 2.0 mg/m³)

Solid Particles: <2.0 mg/m³ (filter is required if over 2.0 mg/m³)

Structure

Connection: 3 cables (power, signal output, relay); φ6 gas inlet; φ6 gas outlet

Body Material: Carbon steel

Dimensions: 560 × 330 × 330 mm (H × W × D)

Weight: About 69 kg

Certificate

EX: Ex d IIC T6 Gb

SIL: SIL2
