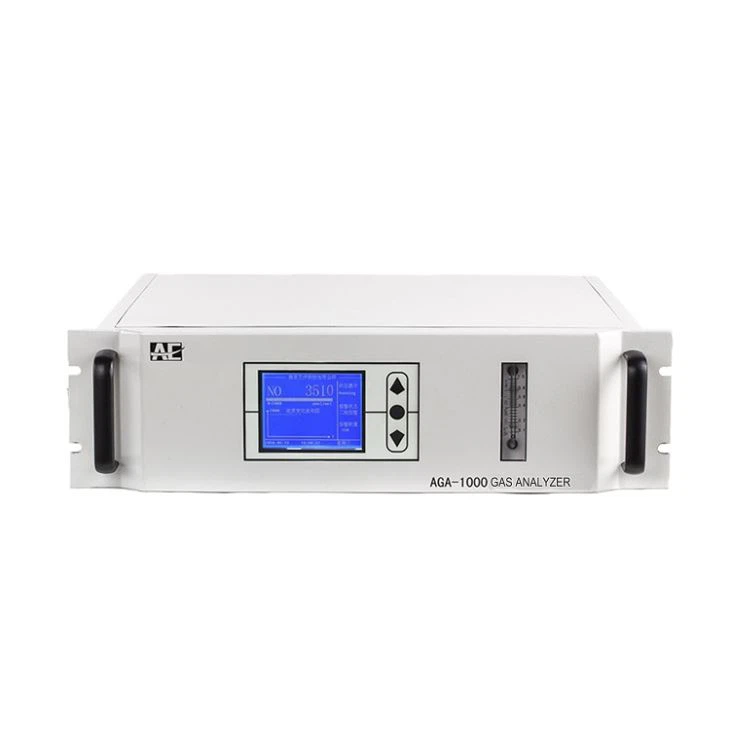

AIYI AGA1000 Online NDIR Natural Gas Analyzer

Non explosion-proof

Function

Measure Range CO₂: 0–2000 ppm / 1 % / 15 % / 30 % / 100 % VOL

Measure Range CH₄: 0–5 % / 15 % / 100 % VOL

Measure Range O₂: 0–5 % / 15 % / 30 % (Optional)

Measure Range CO: 0–5000 ppm / 1 % / 10 % / 30 % / 100 % VOL

Measure Range SO₂: 0–1000 / 2000 / 5000 / 6000 ppm

Principle: NDIR

Accuracy: ±2 % F.S.

Resolution: 1 ppm / 0.1 % / 1 % VOL (based on range)

Repeatability: ±2 %

Zero Drift: ±2 % F.S. / 7 days

Span Drift: ±2 % F.S. / 7 days

Response Time: ≤10 s (T90)

Warm-up Time: ≤30 min

Operating Temperature: 0 °C – 40 °C

Electric

Screen: Monochromatic LCD 320 × 240

Power Supply: 220 VAC / 50 Hz

Power Consumption: ≤100 W

Signal Output: 4–20 mA, RS485, 2 relays

Sampling Requirements

Flow Rate: 0.5 L/min

Humidity: 0–95 % RH

Oil Mist / Solution Limit: < 2.0 mg/m³ (filtering equipment is necessary if it exceeds the range)

Solid Particles Limit: < 2.0 mg/m³ (filtering equipment is necessary if it exceeds the range)

Structure

Interface: 1 pc CEE plug, 1 pc DB25 signal output plug, 1 pc 485 standard DB9 plug, φ6 inlet, φ6 outlet

Body Material: Carbon steel

Dimensions: 484 × 130 × 415 mm (H × W × D)

Weight: About 9.3 kg

Certificate

EX: Ex d Ⅱ CT6 Gb
