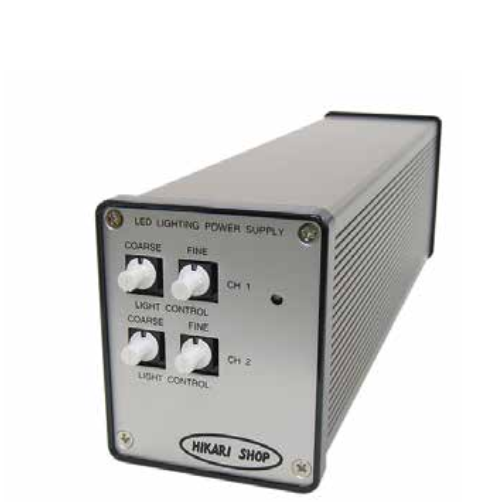

Aitec TPDP2B-2430NCW PWM Control Power Supply (2ch, 1.12A, 27W)

Light control setting system: Digital setting (8 bits, 256 gradations)

Output control method: PWM control (56 ±5 kHz)

Number of outputs: 2ch

Output voltage: 24 VDC (±0.5V)

Maximum output current: 1.12A

Maximum output capacity: 27W

External ON/OFF:

+ With external ON/OFF control (pin open: lit, short-circuited: unlit)

+ Logic inversion of ON/OFF control is enabled by the internal settings

External light control: With external light control (8 bits, 256 gradations)

Input voltage, frequency: 100 VAC to 240 VAC, 50/60 Hz (worldwide)

Output connector/polarity: SMP-04V-BC (J.S.T. Mfg.) /　1: NC, 2: +(DC24V), 3: -(GND), 4: NC

External control connector: DALC-J15SA-23 (Dsub 15 pins)

External control input specification:

+ 1: COM, 2 to 9: D0 to D7

+ 10 to 11: ON/OFF

+ 12: +5V, 13:GND, 14to15:NC

Outer dimensions L1: 218

Outer dimensions L2: 186

Usage environment: Temperature: 0°C to 40°C, humidity: 20 to 85RH (no condensation), indoor lighting equipment

Storage environment: Temperature: 0°C to 60°C, humidity: 20 to 85RH (no condensation)

Cooling system: Natural air cooling

Mass: 850g
