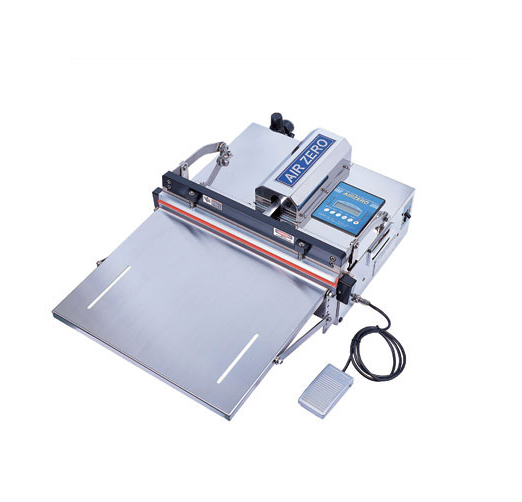

Airzero AZ-800-E Vacuum Packaging Machine

WEIGHT (㎏): 30㎏ ( Notice: This value is changeable relying on vacuum pump type)

BODY: Stainless Steel

SEALING BAR LENGTH (㎜): 600㎜ (option: 450, 800, double heat wire)

SEALING BAR WIDTH (㎜): 5, 10㎜

VACUUM PUMP: Ejector vacuum pump type, oil vacuum pump, oilless vacuum pump

(Refer to selection method of vacuum pump)

REQUIRED ELECTRICITY: 1ph, 220V, 50/60㎐ (Option : 110V)

REQUIRED AIR PRESSURE: 5-7kg/㎠

Max. instantaneous consumed electricity1.8 ~ 4.0㎾ ( relying on sealing bar's length and width)

MAX. FINAL VACUUM: generally 85㎪ in case of using ejector type vacuum pump

VACUUM CREATIONtimer: controlled / vacuum sensor controlled

GAS FLUSHING/SEALING/COOLING: timer controlled

VACUUM VISUALISATION: appears digitally on LCD panel of control box

RECOMMENDED FOR: when a user needs a sub-stand on which the machine is put

PROCESS SETTING: The control unit memorizes various combinations of vacuum, gas flush & seal among MODE 1 ~ 8, besides S mode for only seal and V mode for only vacuum & seal.

ACCESSORIES ( FREE OF CHARGE )

1) SPARE PARTS - HEAT WIRE, TEFLON SHEET, FUSE

2) TOOLS - WRENCH SET, SPANNER, DRIVER

3) OTHERS - WORK trAY, TOOL BOX

Datasheet

- APPLICATION FIELD ( INDUSTRIAL GOODS ):

+ Application Field (Industrial Goods): Semicon & Wafer / Electric, Optical & Medical Goods / Machinery Parts / Mobile Phone Parts / Research Equipment / Silicon / Others

+ Buyer: Freescale, Simens, Molex, Osram, Samsung, Sanyo, Toyota, Ims, Panasonic,Ntt Photonics, Hynix, Ricoh, Airbus, Fujikura, Carsem, Ouyee, Hitachi, Stec, Integrated Icroelectronics, New Honest Technology, Rlx Componets, Vacuumschmelze Magnetics,Nxp Manufacturing, Intertek Testing, Loytec,Nitto Denko, Mvp Micro, Delta Malta, Etc.

- APPLICATION FIELD ( FOOD ):

+ Application Field (Food): Seafoods / Fishes / Meats / Vegetables / Fruits / Grains / Tea / Coffee / Nuts / Noddle / Fodder / Cheese / Herbs / Dried Fishes & Meats / Hot Goods

+ Buyer: Donghae dried fish, pulhana farm, zhuhai food, myongmun catering, biosytech,brown rice, maeil dairying, baegam agricultural cooperative, songdo marine,hanbando foods, midang namwongol fish soup, petworld, haitai dairying, etc.

Dimension (Unit:mm)
