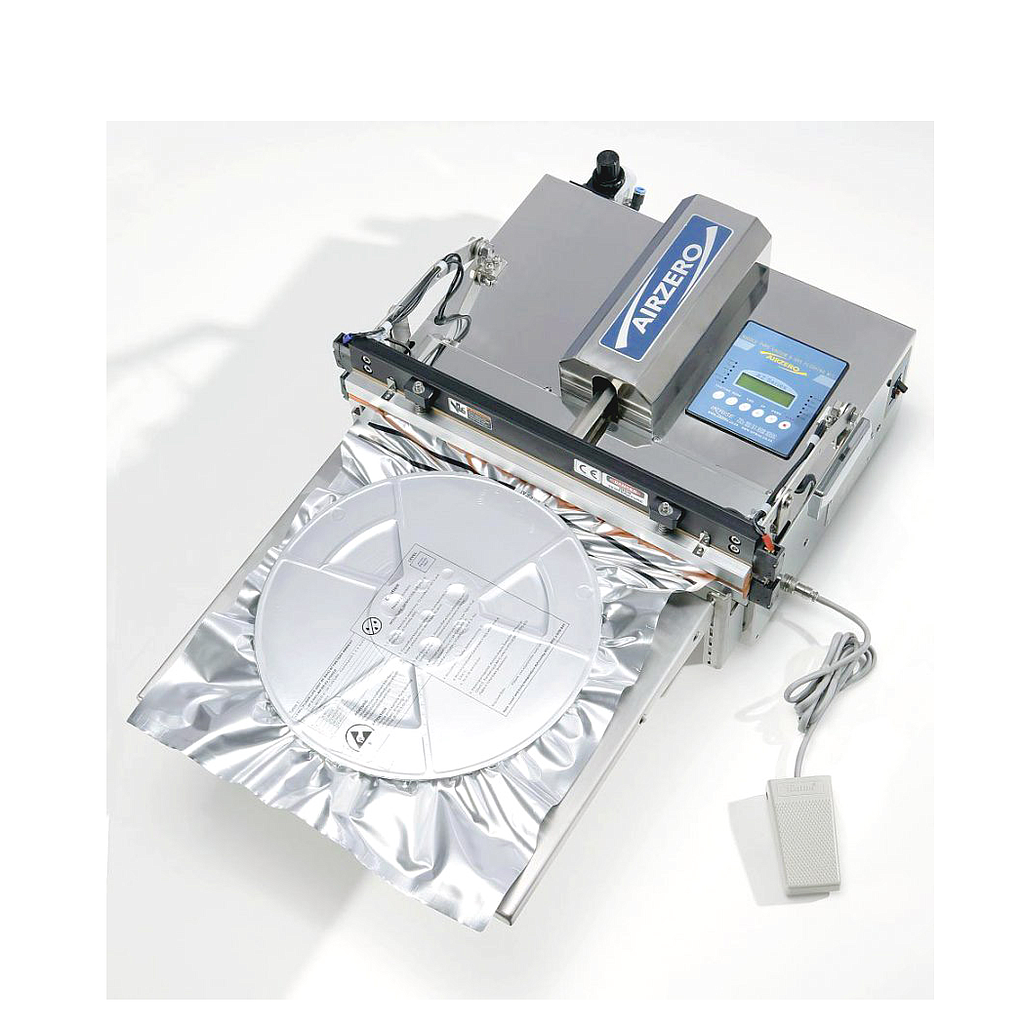

Airzero AZ-450E Vacuum Packaging Machine

WEIGHT (㎏): 30㎏

BODY: Stainless Steel

SEALING BAR LENGTH (㎜): 450㎜ (option : 600, 800, double heat wire)

SEALING BAR WIDTH (㎜): 5, 10㎜

VACUUM PUMP: Ejector vacuum pump type, oil vacuum pump, oilless vacuum pump (Refer to selection method of vacuum pump)

REQUIRED ELECTRICITY: 1ph, 220V, 50/60㎐ (Option : 110V)

REQUIRED AIR PRESSURE: 5-7kg/㎠

Max. instantaneous consumed electricity: 1.8 ~ 4.0㎾ ( relying on sealing bar's length and width)

MAX. FINAL VACUUM: generally 85㎪ in case of using ejector type vacuum pump

VACUUM CREATION: timer controlled / vacuum sensor controlled

GAS FLUSHING/SEALING/COOLING: timer controlled

VACUUM VISUALISATION: appears digitally on LCD panel of control box

RECOMMENDED FOR: when a user needs a sub-stand on which the machine is put

PROCESS SETTING: The control unit memorizes various combinations of vacuum,

gas flush & seal among MODE 1 ~ 8, besides S mode for only seal and V mode for only vacuum & seal.

ACCESSORIES ( FREE OF CHARGE ):

1) SPARE PARTS - HEAT WIRE, TEFLON SHEET, FUSE

2) TOOLS - WRENCH SET, SPANNER, DRIVER

3) OTHERS - WORK trAY, TOOL BOX

Datasheet
