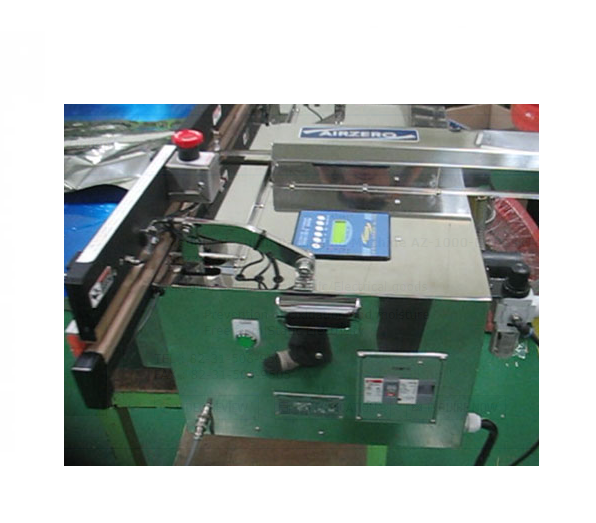

Airzero AZ-1000-E Vacuum Packing Machine (Desktop type)

BODY: Stainless Steel

WEIGHT (㎏ ): Approx. 55 ㎏

SEALING BAR LENGTH (㎜): 1000㎜

SEALING BAR WIDTH (㎜): 10㎜ (option : 5㎜)

VACUUM CREATIONEjector: vacuum

REQUIRED ELECTRICITY: 3ph, 380V, 50/60㎐

REQUIRED COMPRESSOR AIR: 5-7kg/㎠

MAX. FINAL VACUUM: generally 75㎪

VACUUM CREATION: Timer controlled / Vacuum sensor controlled

GAS FLUSHING/SEALING/COOLING: Timer controlled

VACUUM VISUALISATION: Appears digitally on LCD panel of control box

RECOMMENDED FOR: when a user needs a sub-stand on which the machine is put

PROCESS SETTING: The control unit memorizes various combinations of vacuum, gas flush & seal among MODE 1 ~ 8, besides S mode for only seal and V mode for only vacuum & seal.

OTHERS: Use of big capacity of vacuum Ejecter, vacuum line and operation parts

Long Nozzle - The degree that nozzle moves forward can be adjusted

Manual

- APPLICATION FIELD ( INDUSTRIAL GOODS ):

+ Application Field (Industrial Goods): Semicon & Wafer / Electric, Optical & Medical Goods / Machinery Parts / Mobile Phone Parts / Research Equipment / Silicon / Others

+ Buyer: Freescale, Simens, Molex, Osram, Samsung, Sanyo, Toyota, Ims, Panasonic,Ntt Photonics, Hynix, Ricoh, Airbus, Fujikura, Carsem, Ouyee, Hitachi, Stec, Integrated Icroelectronics, New Honest Technology, Rlx Componets, Vacuumschmelze Magnetics,Nxp Manufacturing, Intertek Testing, Loytec,Nitto Denko, Mvp Micro, Delta Malta, Etc.

- APPLICATION FIELD ( FOOD ):

+ Application Field (Food): Seafoods / Fishes / Meats / Vegetables / Fruits / Grains / Tea / Coffee / Nuts / Noddle / Fodder / Cheese / Herbs / Dried Fishes & Meats / Hot Goods

+ Buyer: Donghae dried fish, pulhana farm, zhuhai food, myongmun catering, biosytech,brown rice, maeil dairying, baegam agricultural cooperative, songdo marine,hanbando foods, midang namwongol fish soup, petworld, haitai dairying, etc.

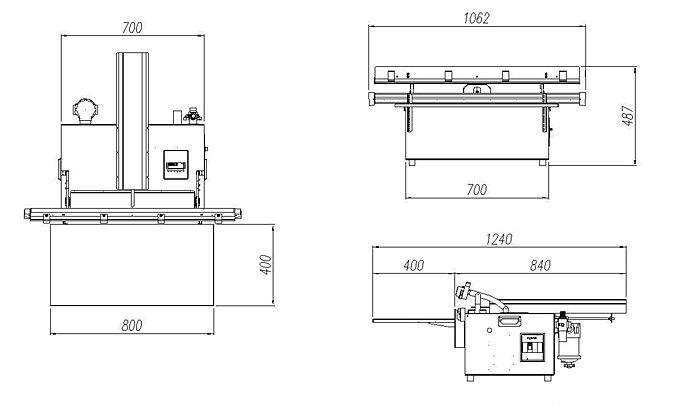

Dimension (Unit:mm)
