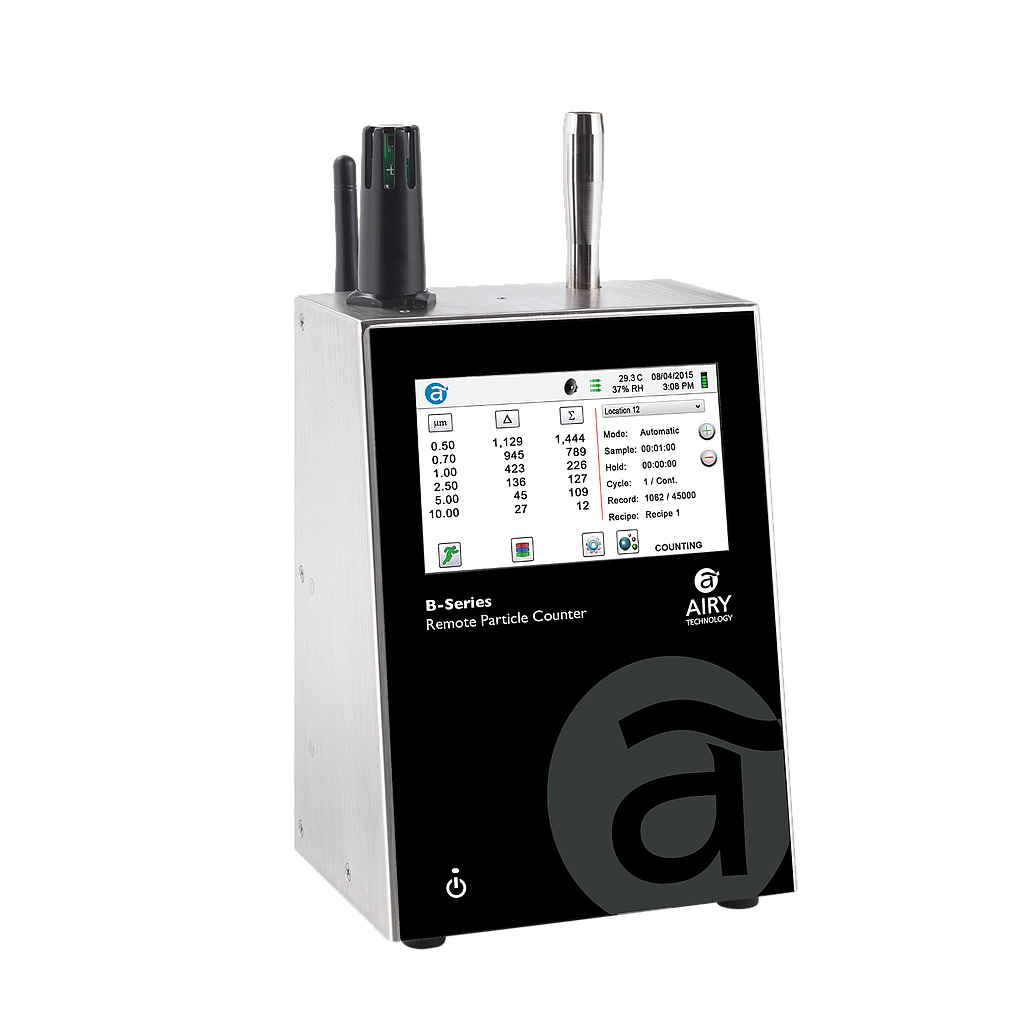

Airy Technology B7501-30 Large Particle Counters (0.5 - 75µm)

Size Range: 0.5 to 75 μm

Size Channels: Factory calibrated at 0.5, 1.0, 2.5, 5.0, 10.0, 30.0 μm variable binning

Flow rate: 0.1 CFM (2.83 LPM)

Zero Count: < 1 count / 60 minutes (< 1 particles /6 ft3). No fault count subtraction

Number of Channels: up to 30 Channels

Dimensions (L x W x H): 5.22" x 3.81" x 9.42" (14.0 cmx 9.7 cmx 23.9 cm) includes barb fittings

Weight: 2.6 lb (1.18 kg)

Accessories: Operating manual and IMS software on USB flash drive, isokinetic probe, temperature relative humidity sensor, filter, battery, USB cable, power supply and cable

Sample Time: 1 second to 99 hours

Power: 110 to 240 VAC 50/60 Hz universal in-line power supply

Operating Conditions: 41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing

Storage Conditions: 32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing
