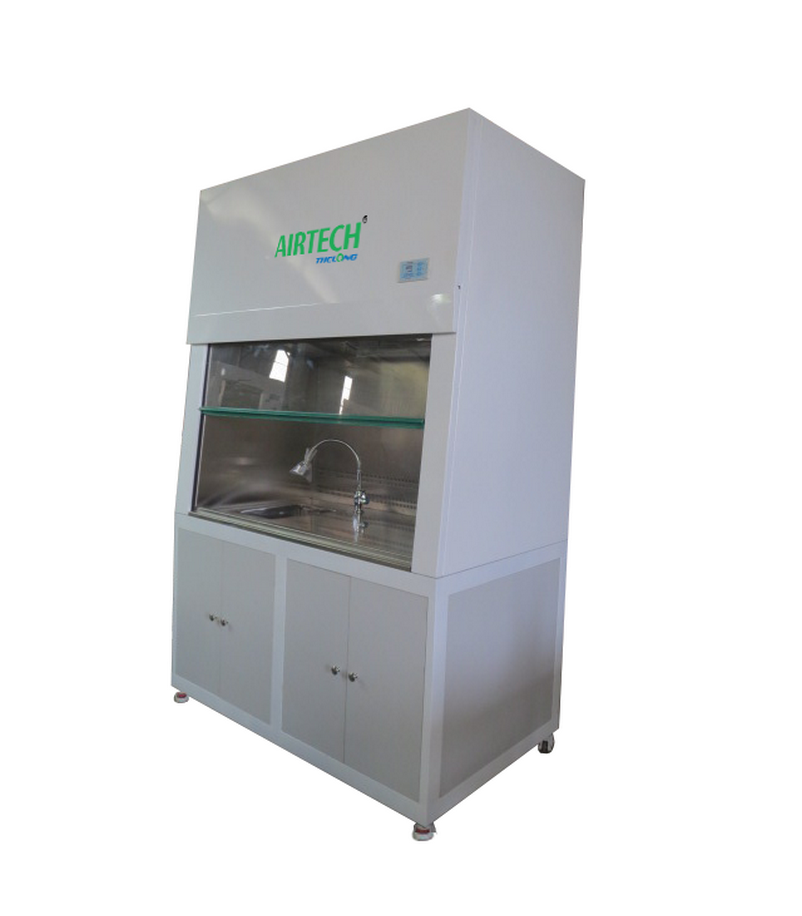

Airtech Thelong ATV-FH1000 Fume Hood (0.5 m/s)

• Total dimensions (RxSxC): 1000 x 800 x 1900 (mm)

• Working dimensions (RxSxC): 800 x 620 x 720 (mm)

• Structure:

+ Case: Electrostatic powder coated steel

+ Stands: Electrostatic powder coated steel

• Working table surface: Phenolic / Accrording to user's requirements

• Door:

+ Structure: Toughened glass

+ Sliding (up and down): Manually

• Power supply: 220VAC/50Hz/1Phase/200W

• Fan: 200W x 01 (unit)

• Air velocity: 0.5 m/s (100fpm)

• Sink and Faucet: 1 Set

• Noise 1 meter away from the equipment: 62 - 65 (dBA)

• Lighting: Led 600mm: 18W x 01 (unit)

• UV lamp(s): 600mm: According to user's requirements

• Deodorizing carbon filter: 400 x 400 x 50 (mm) x 01 (unit)

• Other specifications: According to user's requirements
